Description

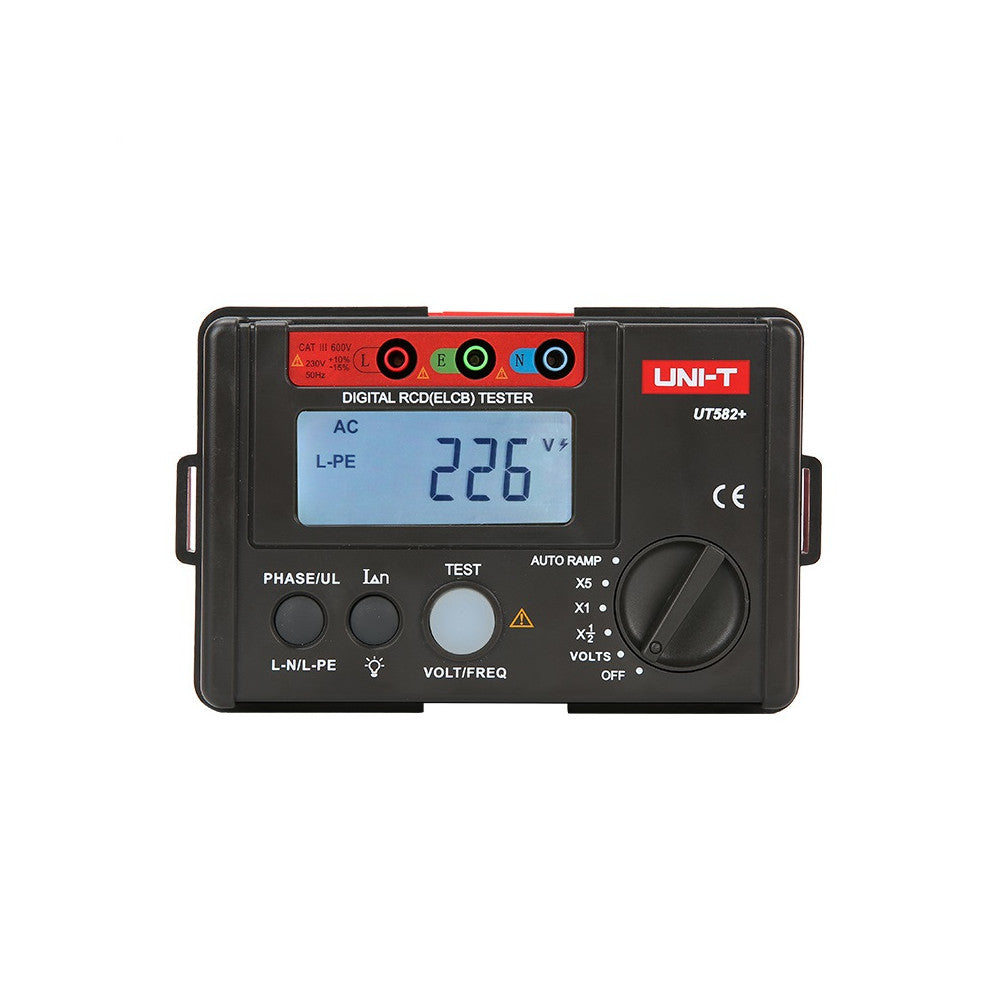

The UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz.
FEATURES:
CATIII 600V
AUTO RAMP
Large quality LCD display
Simple robust design
Over-load indicator
Intelligent micro-processing controller to provide high-accuracy & reliability
Insulation testing can be performed between 30~600V
RCD testing at 10mA, 30mA, 100mA, 300mA & 500mA
Continuity to 2000?
Auto power off.
INCLUDES:
1 x UT582+, 1 x Test line, 1 x Carrying bag, 1 x Elastic strap, 1 x English user manual & 12-month warranty.
Features
Display count: 999
Power o? gear: ?
Low battery indication: 7.2V
APO: Auto power o? function
LCD backlight: ?
Data hold: ?
Phase angle selection: 0° & 180°
Connections check
Simultaneously test the trip time & trip current
AUTO RAMP: ?
Disconnect buzzer: ?
Over-load indicator: OL
Fused: ?
Mis-operation buzzer: ?
Power o? buzzer: ?
Full icon display: ?
Compliance st&ard: IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2
Lead sequence check: LCD
General Characteristics
Power: 1.5V battery (LR6) x 6
Display: 71mm x 34mm
Product colour: Red & grey
Product net weight: 400g
Product size: 160mm x 100mm x 71mm
St&ard accessories: Test line, carrying bag, elastic strap
St&ard individual packing: Box, English manual
