Description

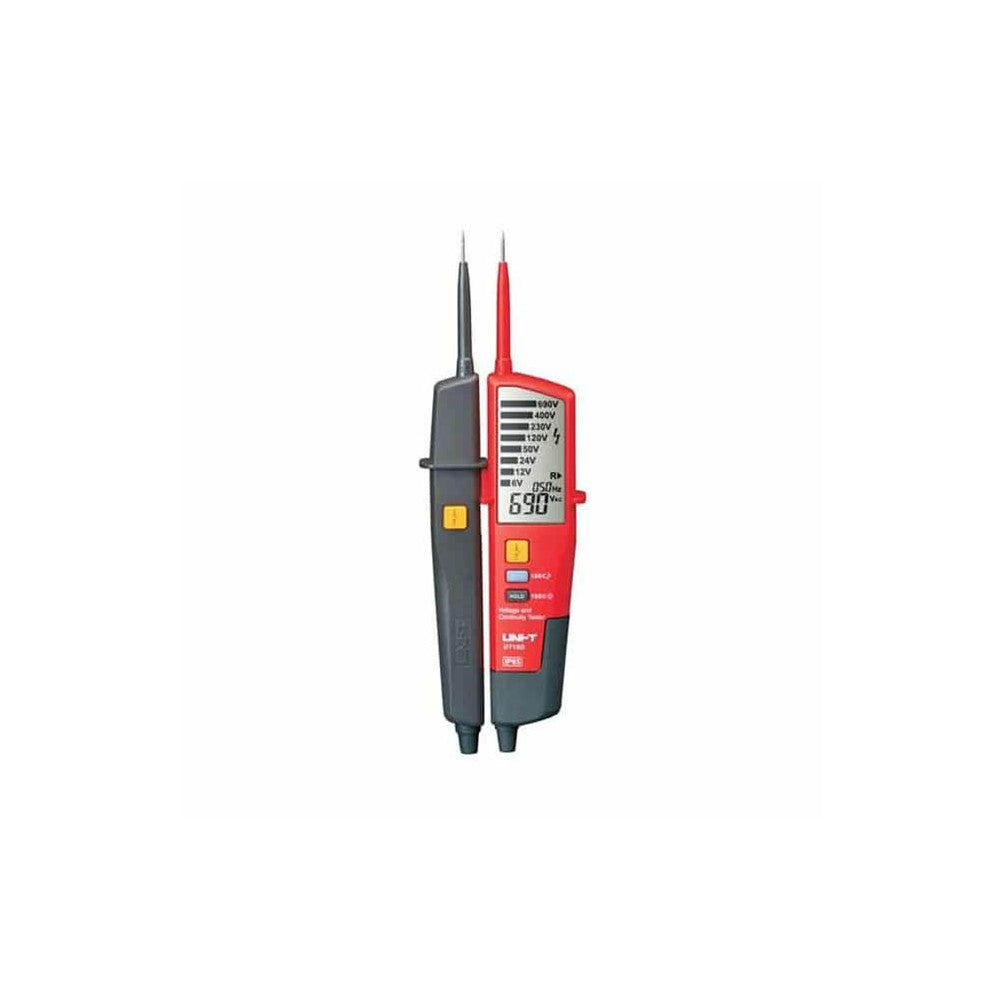

UT18D LCD Voltage & Continuity Testers are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity.
Application fields for UT18C include smelting, electronics, manufacturing, & electrical. It is a perfect tool for electricians, to quickly measure voltage levels in any harsh environments. It should NOT be used in 110V electrical systems.
Features:
• LCD Display & analog Bar Graph
• Auto power off, the conductor to be measured is greater than 12V
• Phase rotation test
• Continuity test with buzzer & LED indication
• RCD: Detecting leakage protective switch
• Low battery Indication & over-voltage arm
• Flashlight
• Buzzer & silent mode
• Auto st&by mode
• Auto range/Inspection
• Voltage, frequency display
• LCD backlight
• Data hold
• Polarity indication
• IP65.
Specifications:
• Over Voltage Protection Class: CAT III 690V, CAT IV 600V
• AC/DC Voltage Range: 12/24/50/120/230/400/690V
• Phase Rotation Test Operating Voltage: 100V~690V, frequency: 50Hz~ 60Hz
• Single Lead (L2) Voltage Detection Operating Voltage: 100V~690V, frequency: 50Hz~ 400Hz
• Continuity Test: 0~100K?
• RCD Test Operating Voltage: 230V(50Hz?400Hz)
• Power: 2 * 1.5V AAA Battery (not included)
• Working Temperature: -15~45?
• Storage Temperature: -20~60?
• Working Humidity: ?85%RH
• LCD Size: 70 * 35mm
• Item Size: 272 * 85 * 31mm
• Item Weight: 281g.
Includes:
1 x UT18D
1 x English manual
1 x Batteries
12 Month Warranty.
Application fields for UT18C include smelting, electronics, manufacturing, & electrical. It is a perfect tool for electricians, to quickly measure voltage levels in any harsh environments. It should NOT be used in 110V electrical systems.
Features:
• LCD Display & analog Bar Graph
• Auto power off, the conductor to be measured is greater than 12V
• Phase rotation test
• Continuity test with buzzer & LED indication
• RCD: Detecting leakage protective switch
• Low battery Indication & over-voltage arm
• Flashlight
• Buzzer & silent mode
• Auto st&by mode
• Auto range/Inspection
• Voltage, frequency display
• LCD backlight
• Data hold
• Polarity indication
• IP65.
Specifications:
• Over Voltage Protection Class: CAT III 690V, CAT IV 600V
• AC/DC Voltage Range: 12/24/50/120/230/400/690V
• Phase Rotation Test Operating Voltage: 100V~690V, frequency: 50Hz~ 60Hz
• Single Lead (L2) Voltage Detection Operating Voltage: 100V~690V, frequency: 50Hz~ 400Hz
• Continuity Test: 0~100K?
• RCD Test Operating Voltage: 230V(50Hz?400Hz)
• Power: 2 * 1.5V AAA Battery (not included)
• Working Temperature: -15~45?
• Storage Temperature: -20~60?
• Working Humidity: ?85%RH
• LCD Size: 70 * 35mm
• Item Size: 272 * 85 * 31mm
• Item Weight: 281g.
Includes:
1 x UT18D
1 x English manual
1 x Batteries
12 Month Warranty.
