Description

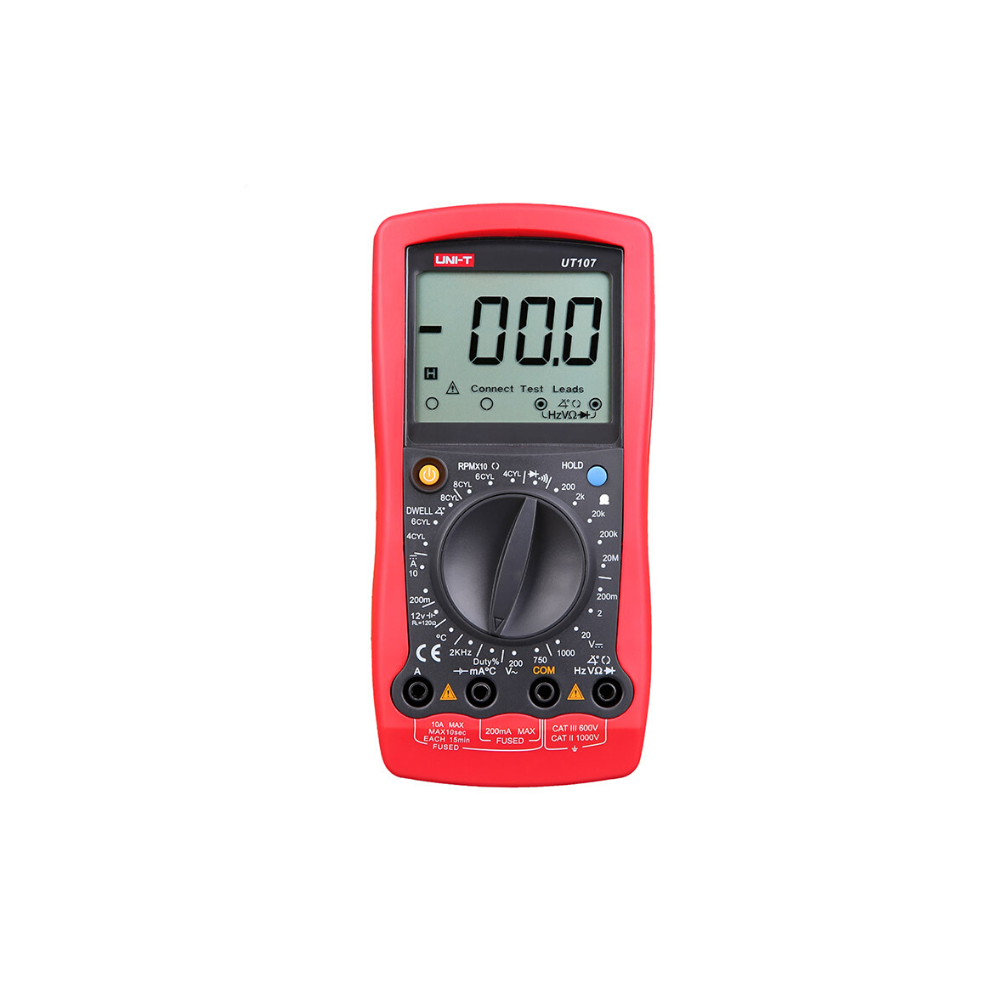

The UNI-T digital automotive multimeter provides a sophisticated measurement technology at a very good price/performance ratio. The automotive Multimeter UT107 effectively helps to diagnose problems with the electronic components of an automobile. This part gives a special introduction as to how the Meter UT107 is used to diagnose any trouble with a fuse, switch, solenoid, relay, starting and charging systems, ignition system, fuel system and engine sensor.
FEATURES:
CAT III 600V / CAT II 1000V rating
2000 Display Count
Temperature Measurement
Load-Free Battery Testing
Battery Power Consumption Test when the Engine Is off
Switch Testing
Solenoid or Relay Testing
Trigger Voltage Battery Load Testing
Voltage Drop Testing
Continuity Testing
Dwell/Tach Testing
INCLUDES:
1 x UT107, Battery, test leads, holster, point contact temperature probe and a 12-month warranty.
SPECIFICATIONS:
Specifications Range UT107
DC voltage (V) 200mV/2V/20V/1000V ±(0.5%+2)
AC voltage (V) 200V/750V ±(0.8%+5)
DC current (A) 200mA/10A ±(0.8%+5)
Resistance (?) 200?/2k?/20k?/200k?/20M? ±(0.8%+5)
Frequency (Hz) 2kHz ±(2%+5)
Temperature (°C) -40°C~1000°C ±(2%+8)
Features
Display count 2000
Manual range ?
Battery test 12V ±(3%+5)
Duty cycle 1%~90% ±(4%+5)
Input impedance for DCV Around 10M? ?
Dwell/Tach 4CYL/6CYL/8CYL ±(3%+5)
General Characteristics
Power 9V battery (6F22)
Display 60mm x 54mm
Product color Red and grey
Product net weight 351g (including holster)
Product size 179mm x 88mm x 39mm
Standard accessories Battery, test leads, holster, point contact temperature probe
Standard individual packing Box, English manual
