Description

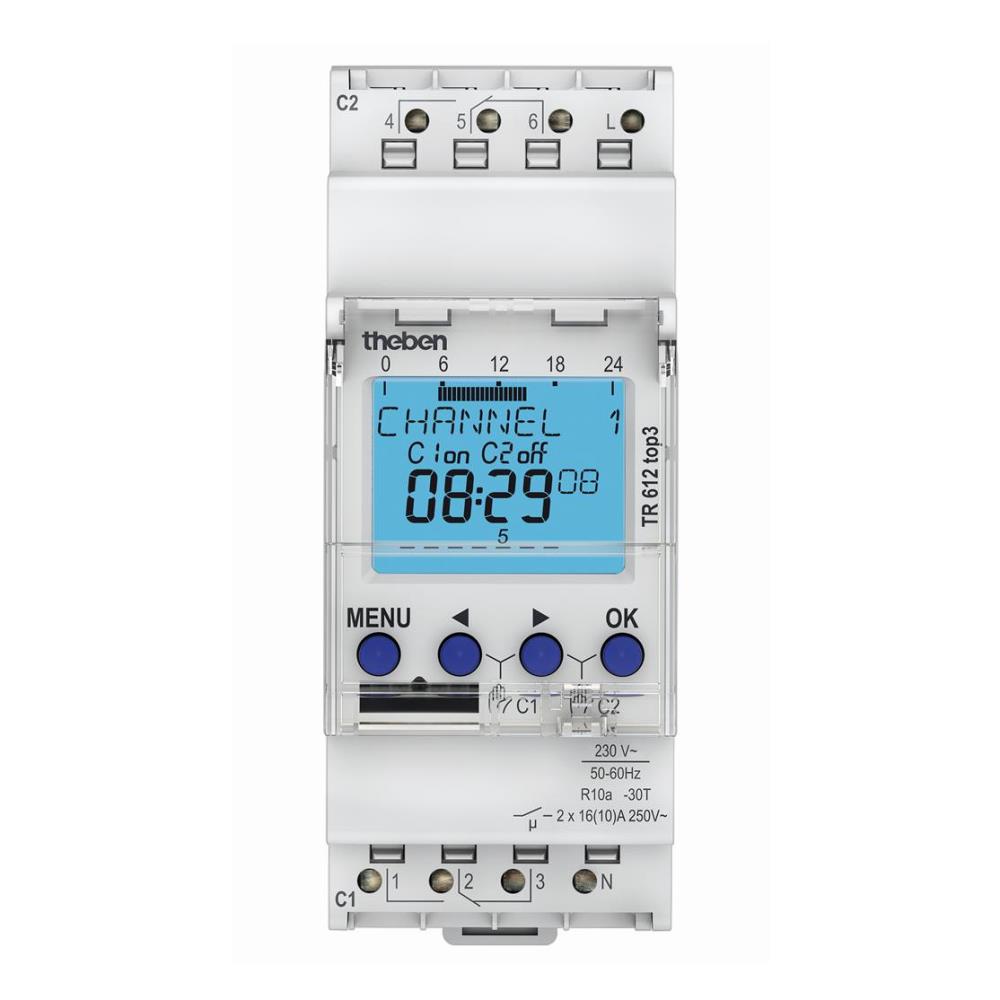

Code: 6120130 - Theben TR612top3 7Day Digi.Timer BT. Res 56Mem DIN 16/10A 230V 2Ch
Digital time switch with weekly program, 2 channels, Programming by app possible
Safe transfer via optional Bluetooth Low Energy OBELISK top3
Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
100 % compatible with top2, DuoFix spring terminals, For 2 conductors each, Wire or strand (with or without wire end sleeve), Wire diameter: 0.5 - 2.5 mm²
fully operable without mains connection
56 memory locations
Interface for OBELISK top2 memory card (PC programming)
2. insertable switching program
10-year power reserve (lithium battery)
Operating voltage 230 V AC
Frequency 50 – 60 Hz
Width 2 modules
Installation type DIN rail
Reactive current is 16A
Inductive current is 10A
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -30 °C … +55 °C
