Description

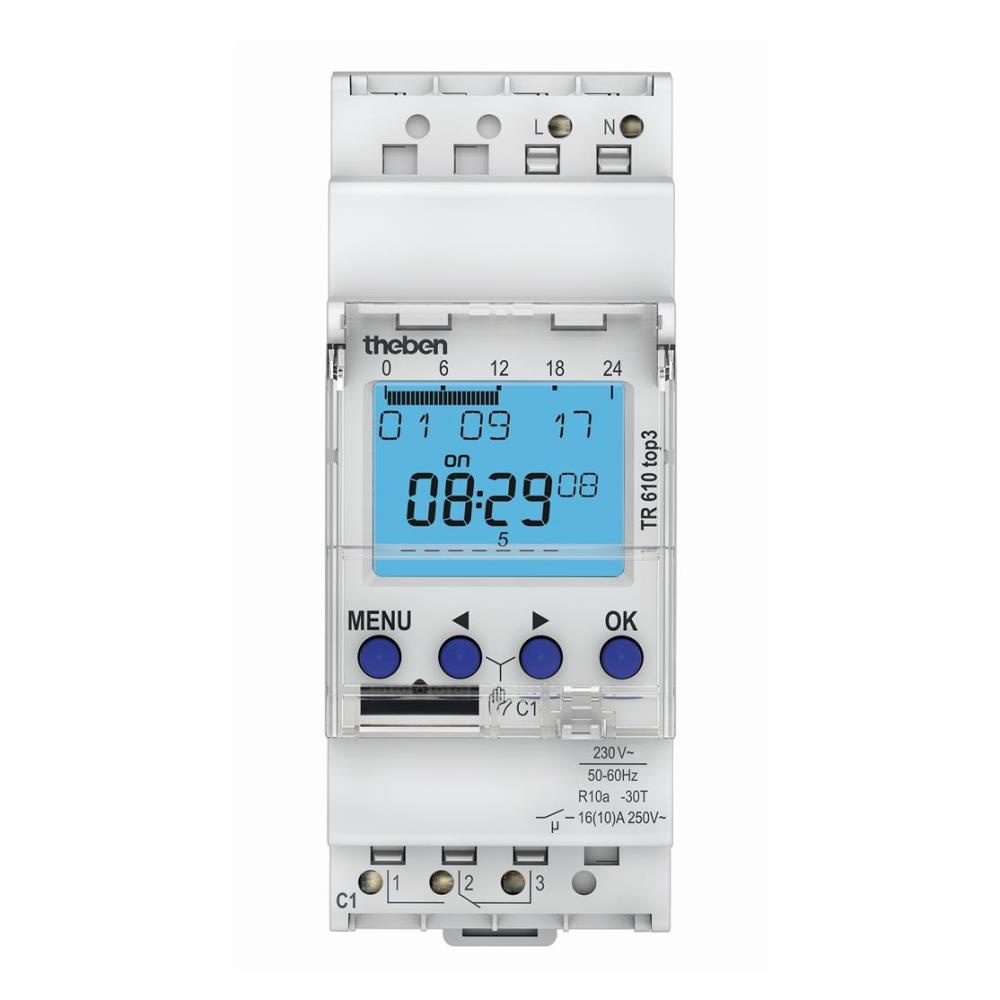

Code: 6100130 - Theben TR610top3 7Day Digi.Timer BT. Res 56Mem DIN 16/10A 230V
Supply Voltage 230V AC
Installation Type - DIN Rail
switching capacity 16A reactive /10A inductive
Protection Class - II
Type of Protection - IP20
Ambient Temperature -30 °C … +55 °C
Digital time switch with weekly program, 1 channel, Programming by app possible, Safe transfer via optional Bluetooth Low Energy OBELISK top3 Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
100 % compatible with top2
56 memory locations
Interface for OBELISK top2 memory card (PC programming)
2. insertable switching program
10 year power reserve (lithium battery)
ON-OFF switching times
Switching preselection
Permanent switching ON/OFF
Supply Voltage 230V AC
Installation Type - DIN Rail
switching capacity 16A reactive /10A inductive
Protection Class - II
Type of Protection - IP20
Ambient Temperature -30 °C … +55 °C
Digital time switch with weekly program, 1 channel, Programming by app possible, Safe transfer via optional Bluetooth Low Energy OBELISK top3 Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
100 % compatible with top2
56 memory locations
Interface for OBELISK top2 memory card (PC programming)
2. insertable switching program
10 year power reserve (lithium battery)
ON-OFF switching times
Switching preselection
Permanent switching ON/OFF
