Description

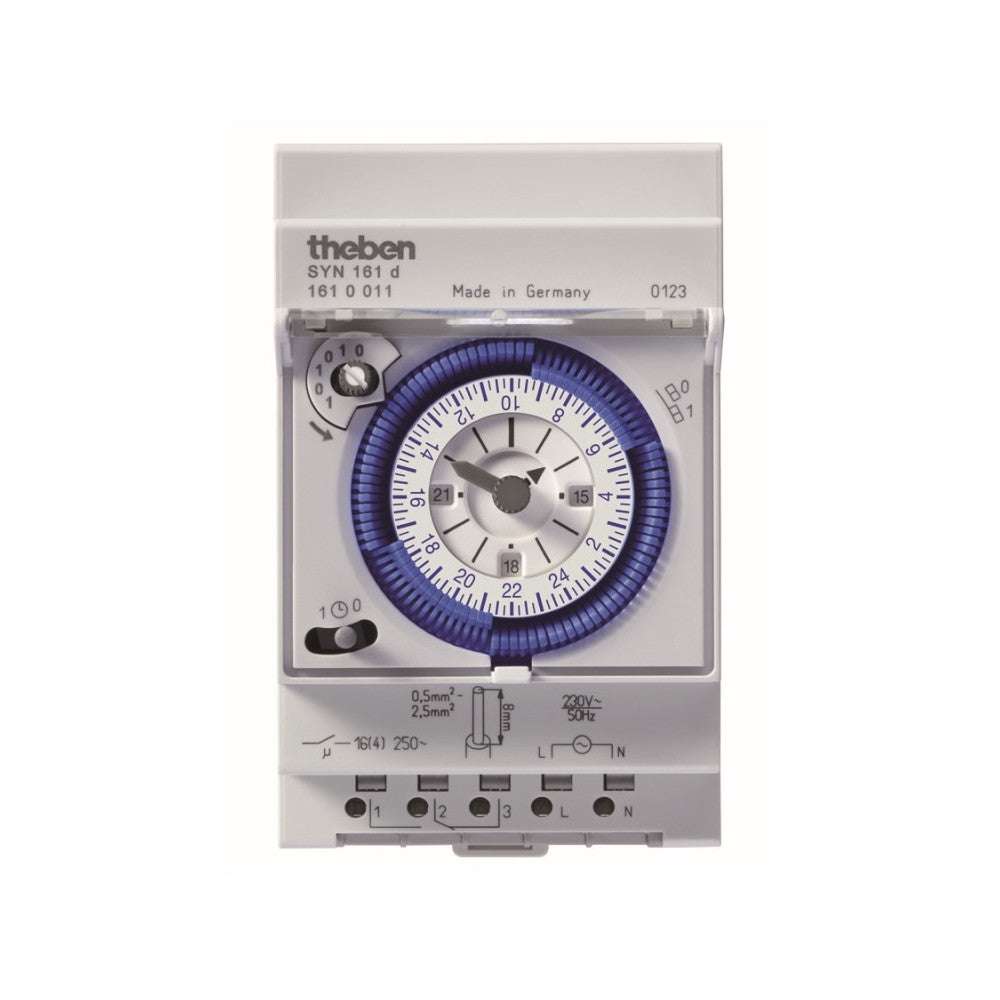

Analogue time switch.
1 channel.
Daily program.
DIN mount, 3 module width.
96 switching segments.
Synchronised with mains.
Shortest switching time of 15 minutes.
Clock hands for time display and in addition 12/24 hour recognition.
Simple summer/winter time correction
Time to be changed clockwise.
DuoFix spring terminals
For 2 conductors each.
Wire or strand (with or without wire end sleeve).
Wire diameter 0,5 - 2,5 mm².
Button for releasing plug-in connection.
Switching pre-selection.
Manual switch with 3 positions - Continuous ON/AUTO/continuous OFF.
Switching status display.
1 channel.
Daily program.
DIN mount, 3 module width.
96 switching segments.
Synchronised with mains.
Shortest switching time of 15 minutes.
Clock hands for time display and in addition 12/24 hour recognition.
Simple summer/winter time correction
Time to be changed clockwise.
DuoFix spring terminals
For 2 conductors each.
Wire or strand (with or without wire end sleeve).
Wire diameter 0,5 - 2,5 mm².
Button for releasing plug-in connection.
Switching pre-selection.
Manual switch with 3 positions - Continuous ON/AUTO/continuous OFF.
Switching status display.
