Description
Code 1810011

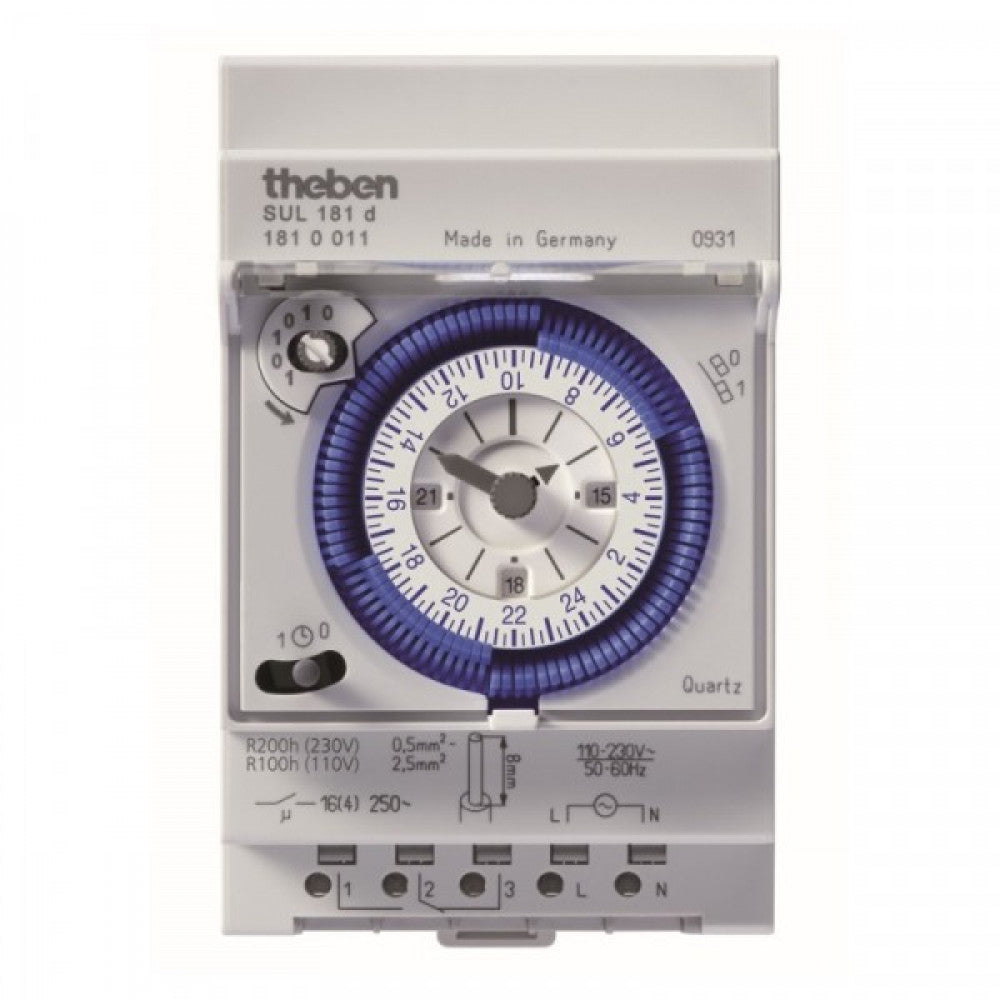

Analogue time switch.
1 channel.
Daily program. DIN mount, 3 module width.
With 200hr power reserve (NiMH rechargeable battery).
96 switching segments.
Quartz controlled.
Shortest switching time of 15 minutes.
Clock hands for time display and in addition 12/24 hour recognition.
Simple summer/winter time correction.
Time to be changed clockwise.
DuoFix spring terminals.
For 2 conductors each.
Wire or strand (with or without wire end sleeve).
Wire diameter 0,5 - 2,5 mm².
Button for releasing plug-in connection.
Switching preselection.
Manual switch with 3 positions - Continuous ON/AUTO/continuous OFF.
Switching status display.
Supply Voltage - 110-230VAC
Current Resistive - 16A
Current Inductive - 4A
Number of Channels - 1
Battery Reserve - Y
Switching Segments - 96
Shortest Switching Time - 15 mins
Features: - Manual Switch, Permanent ON/ AUTO/ continuous OFF
Analogue time switch.
1 channel.
Daily program. DIN mount, 3 module width.
With 200hr power reserve (NiMH rechargeable battery).
96 switching segments.
Quartz controlled.
Shortest switching time of 15 minutes.
Clock hands for time display and in addition 12/24 hour recognition.
Simple summer/winter time correction.
Time to be changed clockwise.
DuoFix spring terminals.
For 2 conductors each.
Wire or strand (with or without wire end sleeve).
Wire diameter 0,5 - 2,5 mm².
Button for releasing plug-in connection.
Switching preselection.
Manual switch with 3 positions - Continuous ON/AUTO/continuous OFF.
Switching status display.
Supply Voltage - 110-230VAC
Current Resistive - 16A
Current Inductive - 4A
Number of Channels - 1
Battery Reserve - Y
Switching Segments - 96
Shortest Switching Time - 15 mins
Features: - Manual Switch, Permanent ON/ AUTO/ continuous OFF
