Description

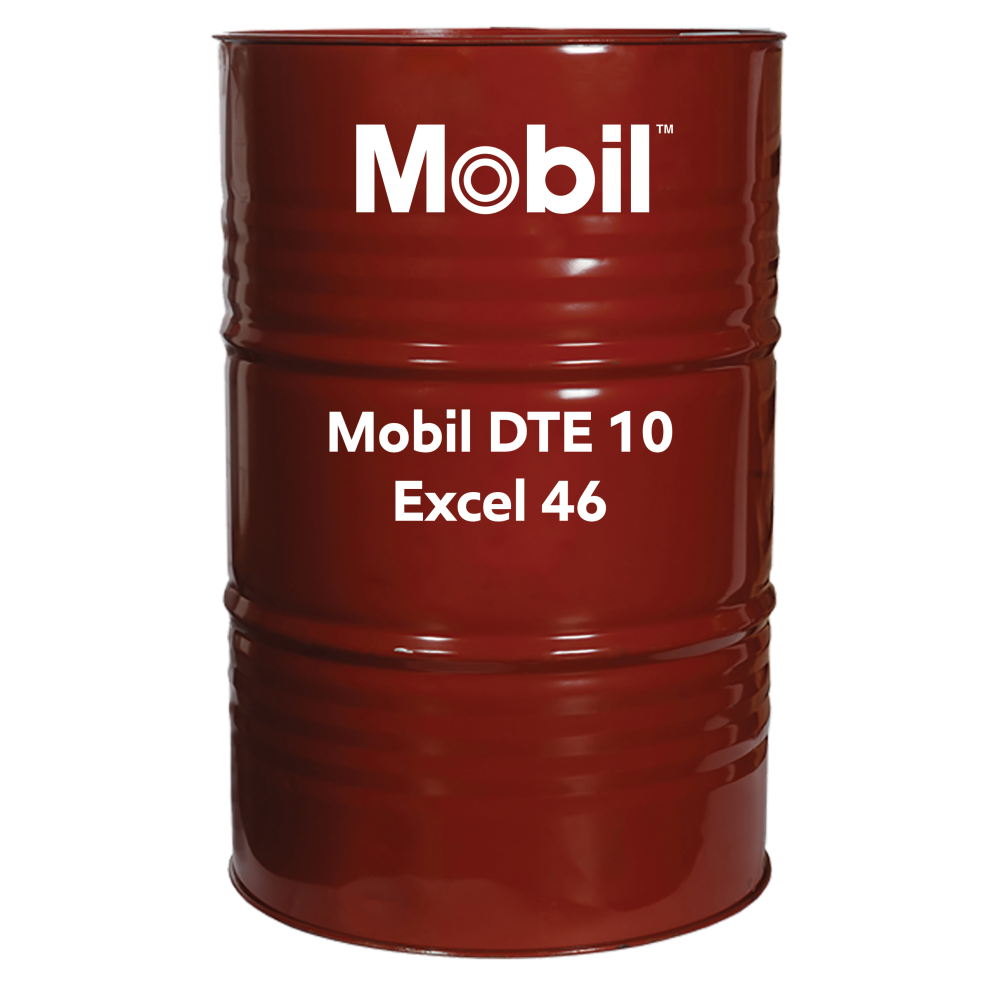

Mobil DTE 10 Excel Series are high performance anti-wear hydraulic oils specifically designed to meet the needs of modern, high pressure, industrial and mobile equipment hydraulic systems. Passing results of acute aquatic toxicity testing (LC-50, OECD 203) Applications Industrial and mobile equipment hydraulic systems operating at high pressures and temperatures in critical applications. Hydraulic systems subject to deposit build-up such as sophisticated Computer Numerically Controlled (CNC) machines, particularly where close clearance servo-valves are used. Systems where cold start-up and high operating temperatures are typical. Systems requiring a high degree of load-carrying capability and anti-wear protection. Machines employing a wide range of components using various metallurgy. Specifications and Approvals DIN 51524-2: 2006-09, DIN 51524-3: 2006-09, ISO 11158 L-HV, JCMAS HK VG46W (JCMAS P 041:2004), Arburg, Krauss-Maffei Kunststofftechnik, HOCNF Norway/NEMS. Mobil DTE 10 Excel Series has the following builder approvals: Denison HF-0, Eaton Vickers 694 (encompasses former I-286-S, M-2950-S or M-2952-S), Frank Mohn, Framo hydraulic cargo pumping, Fives Cincinnati P-70, ORTLINGHAUS-WERKE GMBH ON 9.2.10, Typical Properties ISO Viscosity Grade – 46 Viscosity, ASTM D 445 cSt @ 40deg C – 45.6 cSt @ 100deg C – 8.45 Viscosity Index, ASTM D 2270 -164 Brookfield Viscosity ASTM D 2983, cP @ -20 °C-1870 Brookfield Viscosity ASTM D 2983, cP @ -30 °C – 7060 Brookfield Viscosity ASTM D 2983, cP @ -40 °C – 55770 Tapered Roller Bearing (CEC L-45-A-99), % Viscosity Loss -7 Density 15deg C, ASTM D 4052, kg/L - 0.8502 Copper Strip Corrosion, ASTM D 130, 3 hrs @ 100deg C -1B FZG Gear Test, DIN 51354, Fail Stage -12 Pour Point, degC, ASTM D 97 - -45 Flash Point, degC, ASTM D 92 -232 Foam Sequence I, II, III, ASTM D 892 , ml -20/0 Dielectric Strength, kV, ASTM D877 – 41 Acute Aquatic Toxicity (LC-50, OECD 203) – PASS
