Description

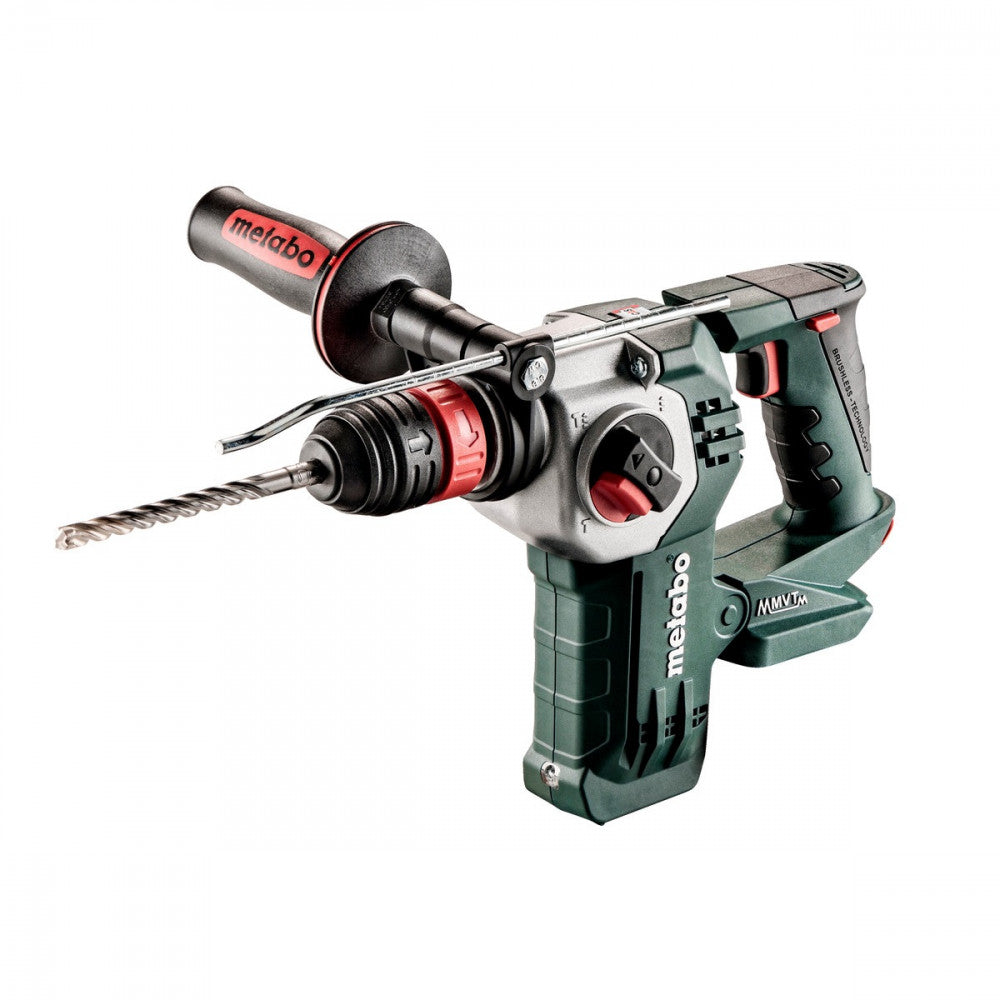

Extremely light and compact cordless hammer with integrated extraction interface
Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
Dust-free drilling with compact dust extraction ISA 18 LTX 24 (accessory)
Combination hammer with 3 functions: hammer drilling, drilling and chiselling
Metabo VibraTech (MVT): working, also continuously, in a low-fatigue manner whilst protecting the user's health
Metabo Quick: fast, tool-free chuck for working with SDS-plus and straight shank drill bits
Vario Constamatic (VTC) Electronics for drililng jobs in materials requiring customised speeds, which remain almost constant under load
Double safe thanks to electronic and mechanical safety shutdown when the drill jams
LED work light for optimum view of the drilling site
Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
Battery voltage18 V
Max. single blow energy (EPTA)2.2 J
Maximum impact rate4500 bpm
Drill-Ø concrete with hammer drills24 mm / 1 "
Drill-Ø masonry with core bits68 mm / 2 5/8 "
Drill Ø steel13 mm / 1/2 "
Drill-Ø soft wood25 mm / 1 "
No-load speed0 - 1200 rpm
Bit retainerSDS-plus
Weight without battery pack2.7 kg / 6 lbs
Weight with battery pack3.3 kg / 7.3 lbs
Vibration
Hammer drilling concrete10.5 m/s²
Uncertainty of measurement K1.5 m/s²
Chiseling8.6 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level91 dB(A)
Sound power level (LwA)102 dB(A)
Uncertainty of measurement K3 dB(A)
