Description

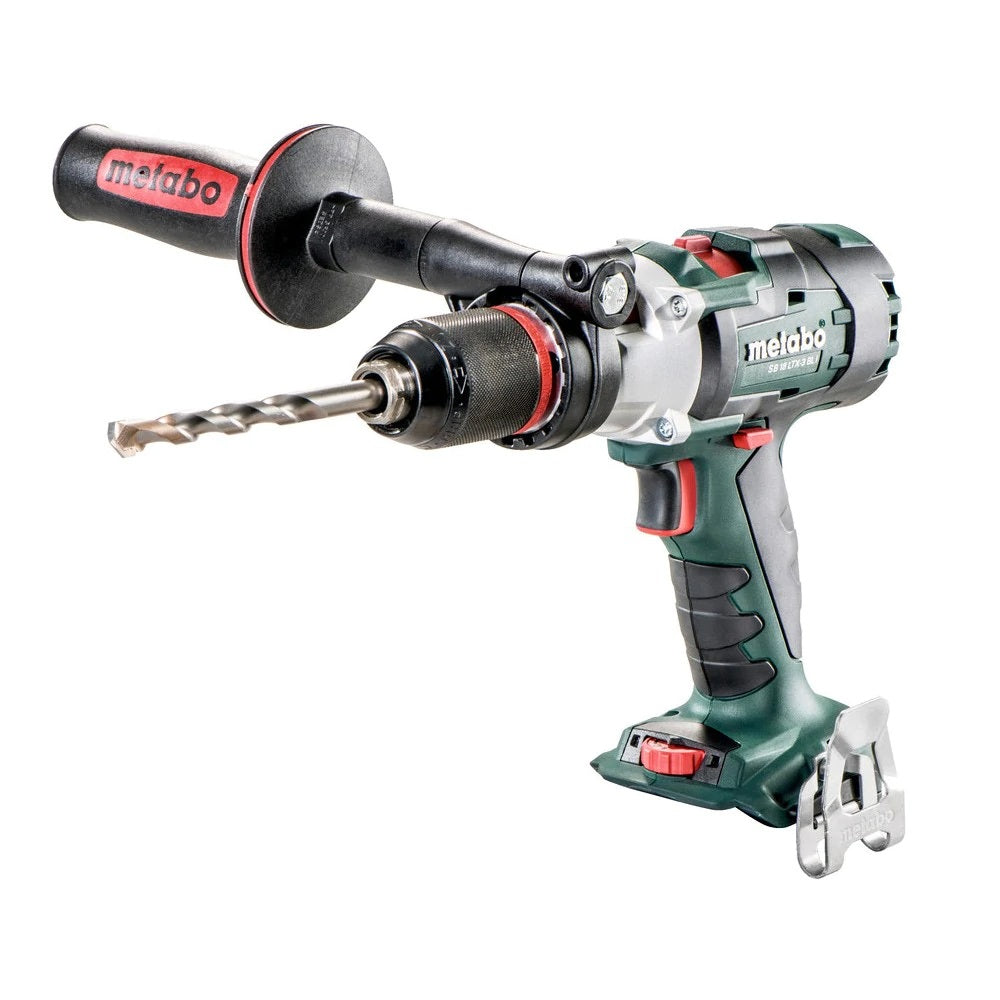

Brushless 3-speed cordless hammer drill with maximum power for demanding applications
Third speed setting with high torque (max. 3,800/min) for extended range of application and even faster drilling progress
Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
Precision Stop: electronic torque control with increased precision for precise, delicate working
High-performance impact mechanism for optimum drilling performance
Spindle with hexagonal recess for screwdriver bits for working without chuck
Collar (Ø 43 mm) for versatile use
Integrated working light to illuminate the contact area
Robust die cast aluminium gear housing for optimum heat dissipation and long service life
With handy belt hook and bit case which can be fixed either on the right or left side
With metaBOX, the intelligent solution for transport and storage
Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
ype of battery packLi-Power
Battery voltage18 V
Maximum torque - soft60 Nm / 531 in-lbs
Pulse torque65 Nm / 48 in-lbs
Maximum torque, hard120 Nm / 1062 in-lbs
Adjustable torque1 - 20 Nm // 9 - 177 in-lbs
Drill-Ø masonry16 mm / 5/8 "
Drill Ø steel13 mm / 1/2 "
Drill-Ø soft wood65 mm / 2 1/2 "
No-load speed0 - 500 / 0 - 2050 / 0 - 3800 rpm
Maximum impact rate32300 bpm
Chuck capacity1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack1.9 kg / 4.2 lbs
Weight with battery pack2.4 kg / 5.3 lbs
Vibration
Drilling in metal3.8 m/s²
Uncertainty of measurement K1.5 m/s²
Impact drilling concrete17.7 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level71 dB(A)
Sound power level (LwA)82 dB(A)
Uncertainty of measurement K3 dB(A)
