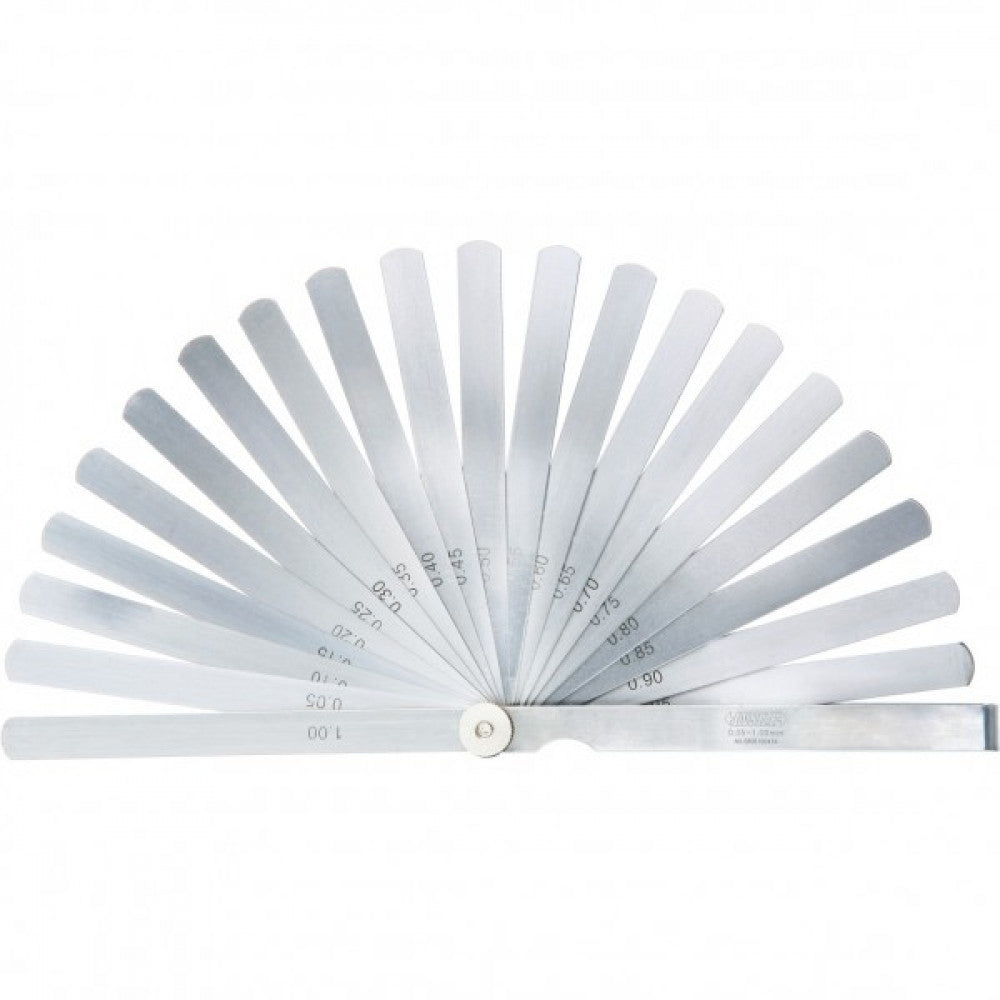

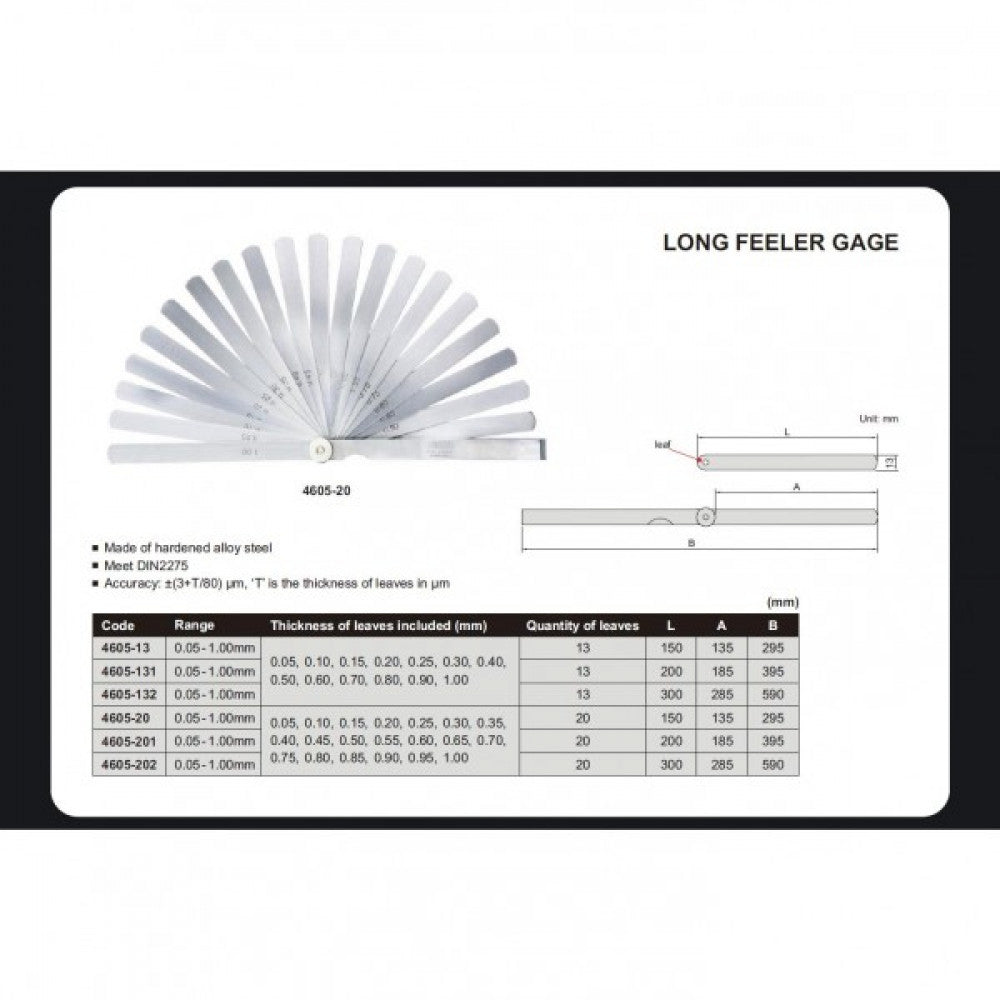

Description
Made of hardened alloy steel
Meets DIN2275
Number of leaves 20
Blade length 285mm
Blade width 13mm
Accuracy: +/- (3+T/80) um, T is the thickness of leaves in um
0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00mm
4605-202
Meets DIN2275
Number of leaves 20
Blade length 285mm
Blade width 13mm
Accuracy: +/- (3+T/80) um, T is the thickness of leaves in um
0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00mm
4605-202
