Description

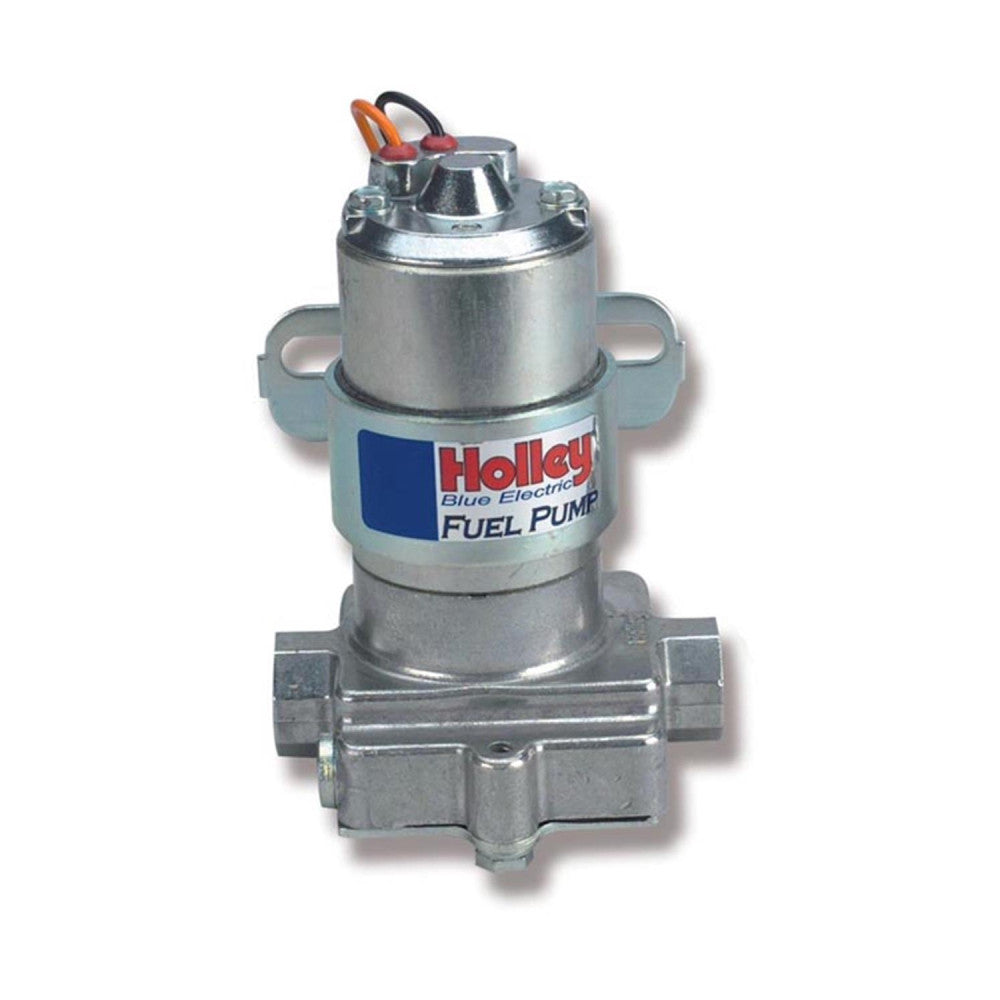

The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features:
Tumble polished billet look
Lower housing casting designed for enhanced fuel flow and quiet operation
Motor draws only 3 amps current
7 1/2 amp fuse recommended
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Specifications :
Brand: Holley
Part Type: Fuel Pumps
Product Line: Holley Blue Electric Fuel Pumps
Fuel Pump Type: Electric external
Flow Rate: 110 gph/416 lph
Fuel Pressure (psi): 14 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: 3/8 in. NPT
Inlet Quantity: 1
Inlet Attachment: Female threads
Fuel Pump Outlet Size: 3/8 in. NPT
Outlet Quantity: 1
Outlet Attachment: Female threads
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pulley Included: No
Quantity: Sold individually.
Notes: This pump flows 70 gph at 9 psi.
