Description

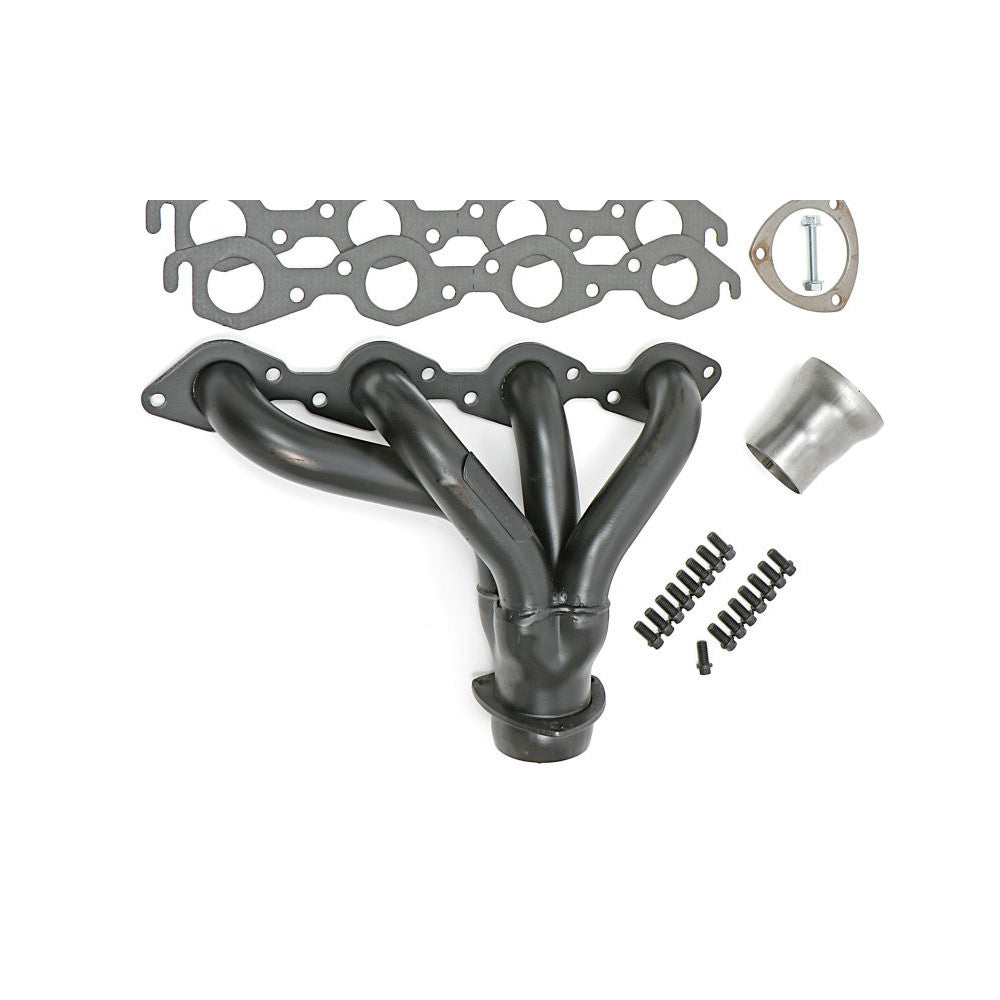

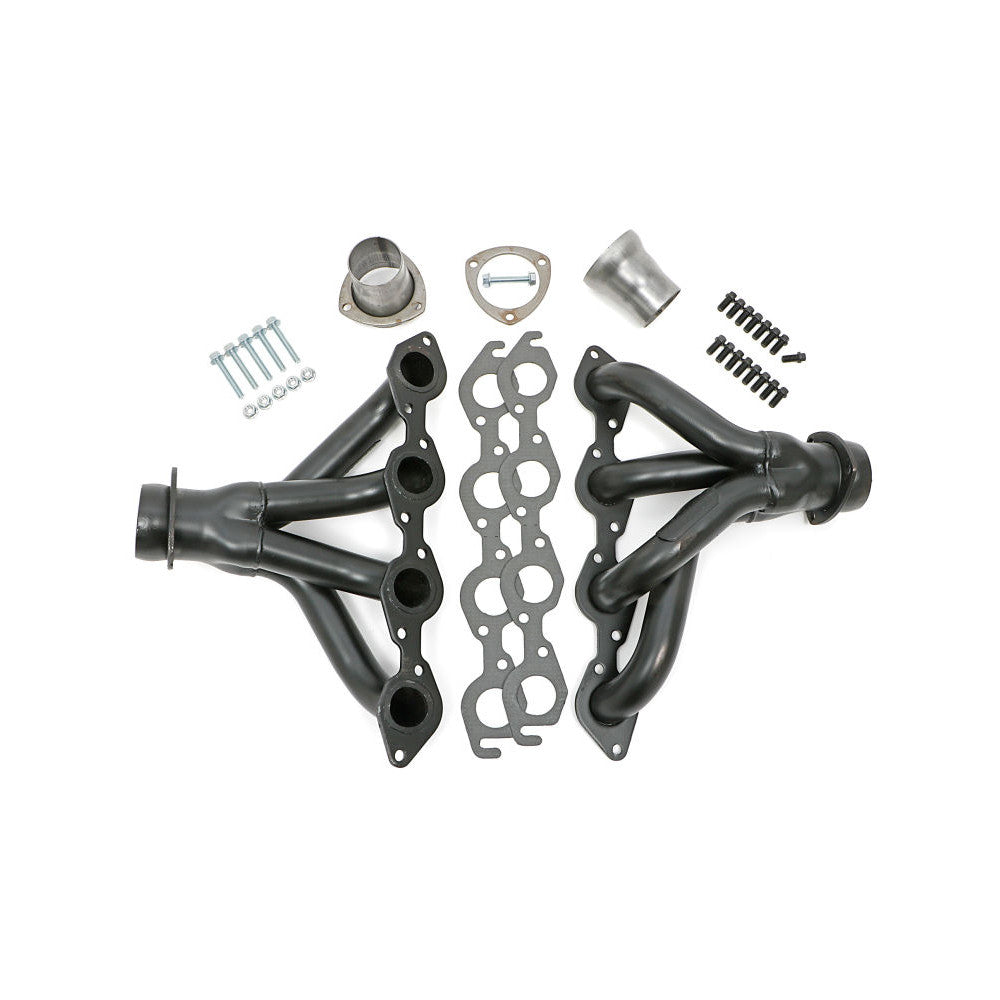

HEDMAN BLOCK HUGGER Headers; Chevy BB 396-502; 1-3/4". Tubes; Uncoated
Street Rod Universal Shorty Style Hedders. Maximum ground clearance.
Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy will have clearance problems on some applications. Bottom of hedder flanges may hit head bolts. Notching may be necessary.
Specifications :
Product Type: Headers
Product Line: Hedman Traditional Block Hugger Headers
Header Style:Block hugger
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 3/4"
Flange Style: Standard
Cylinder Head Port Shape: Round
Collector Attachment: Ball and socket flange
Collector Diameter: 3.00"
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2.500"
Tuned: No
Primary Tube Gauge: 18-gauge
Flange Thickness: 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a pair
Notes: Modification to the shifter linkage may be required. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Street Rod Universal Shorty Style Hedders. Maximum ground clearance.
Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy will have clearance problems on some applications. Bottom of hedder flanges may hit head bolts. Notching may be necessary.
Specifications :
Product Type: Headers
Product Line: Hedman Traditional Block Hugger Headers
Header Style:Block hugger
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 3/4"
Flange Style: Standard
Cylinder Head Port Shape: Round
Collector Attachment: Ball and socket flange
Collector Diameter: 3.00"
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2.500"
Tuned: No
Primary Tube Gauge: 18-gauge
Flange Thickness: 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a pair
Notes: Modification to the shifter linkage may be required. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
