Description

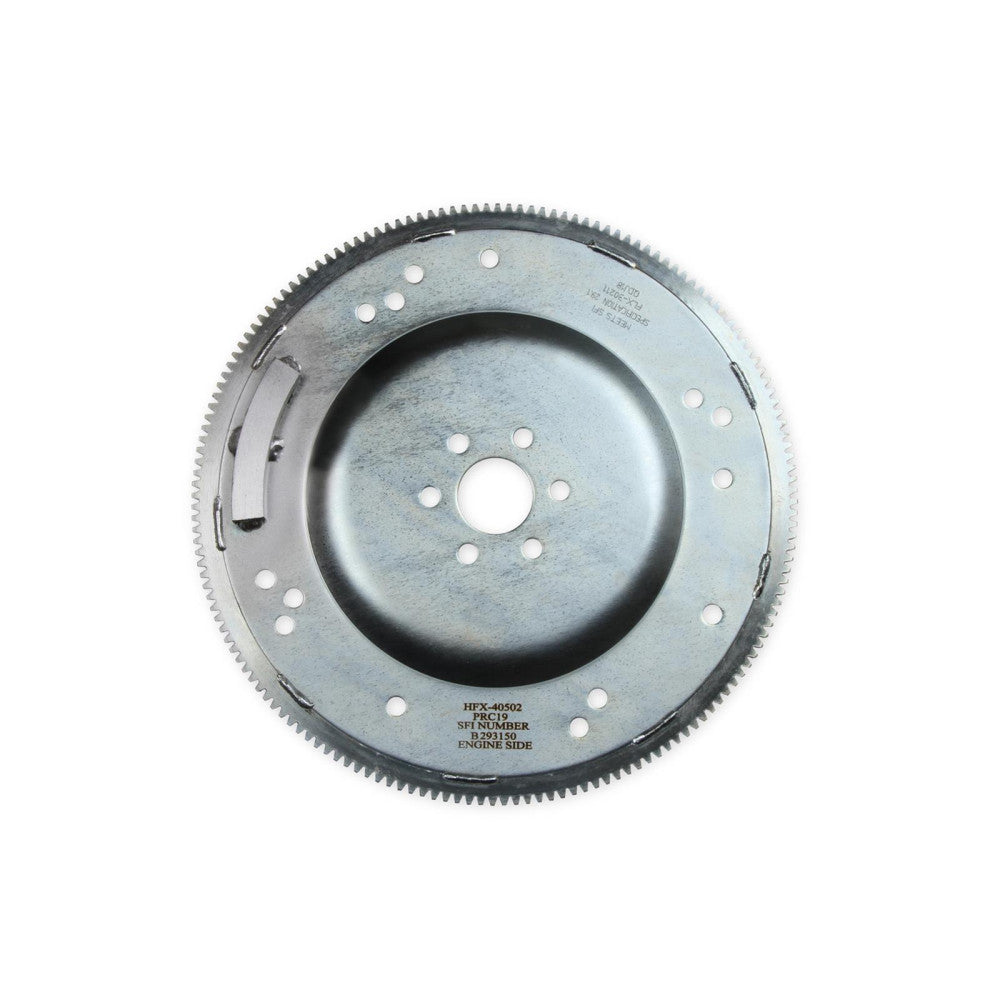

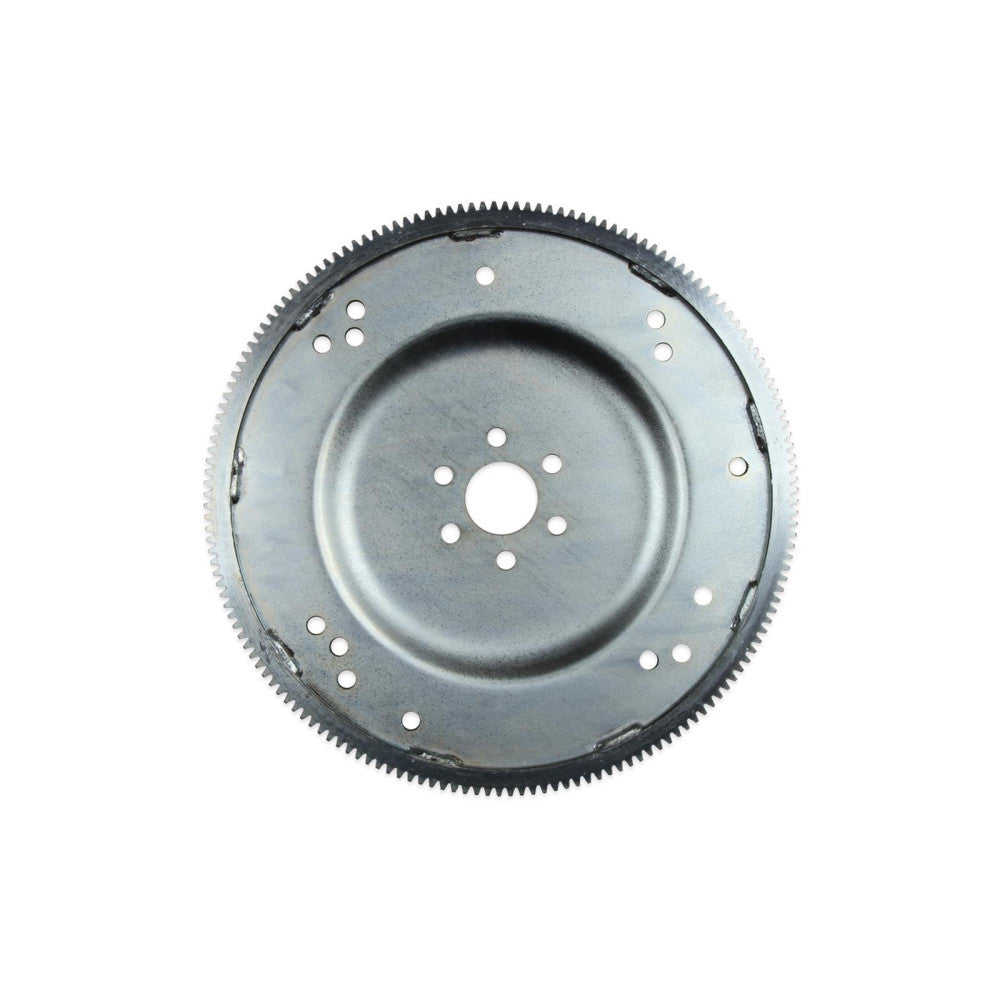

Hays SFI Approved heavy duty flexplates for are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.Features:

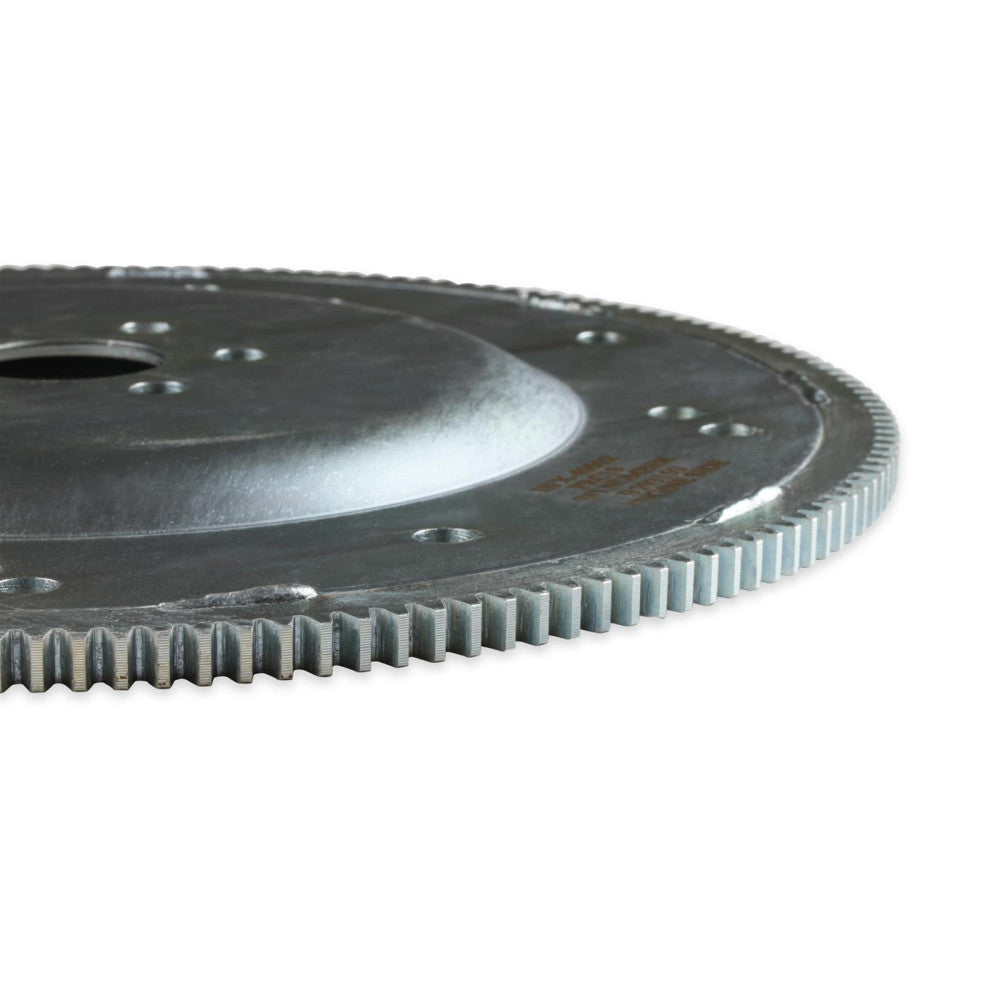

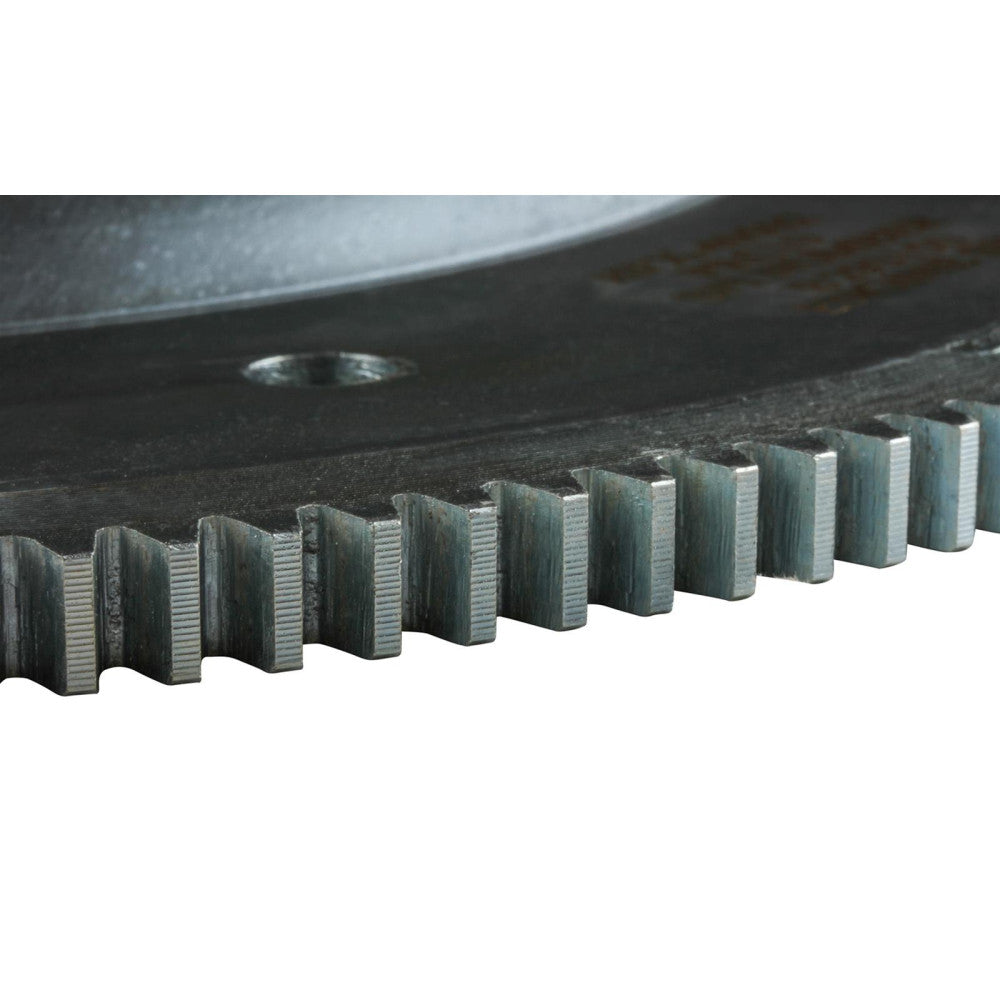

- Flexplate features a precision double welded ring gear
- Has 4mm thick center plate to resist cracking near crankshaft flange
- Zinc-dichromate plated to resist corrosion
- CAD designed to provide optimum performance and reliability
- Available in Internal or External balanced versions
- Applications offered for a wide variety of engine and transmission bolt patterns
Specifications :
Product Type: Flexplates
# of Teeth: 164
Application: Ford
Bolt Pattern:
Ford 10-1/2"
Ford 11-7/16"
GM 10-3/4"
GM 11-1/2"
Brand: Hays
Centerplate Thickness: 4 mm
Rear Main Seal Style: 1-piece, 2-piece
Engine: Small Block Ford
Engine Balance: External, 28 oz. imbalance
Finish: Silver
Material: Steel
SFI Approved: Yes
SFI Certification: 29.1
Warranty: 90 Day
