Description

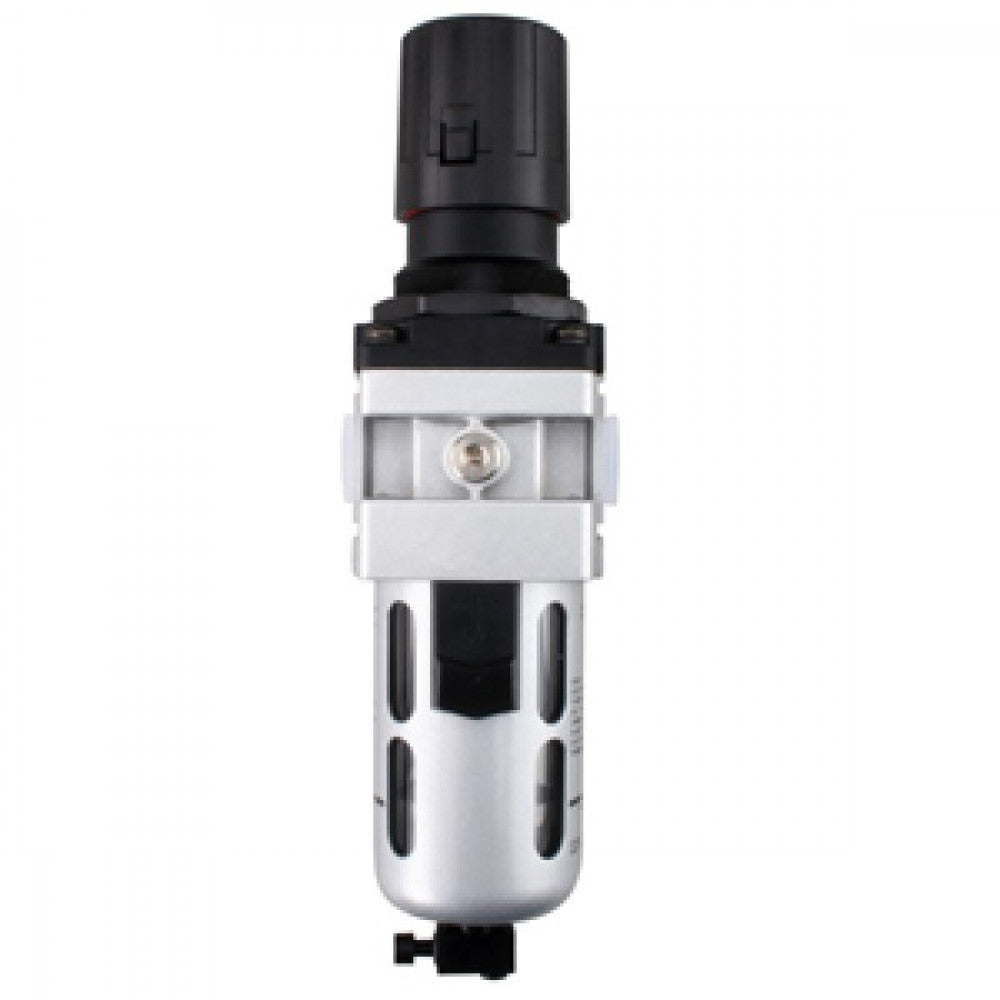

GZ60308 - GROZ Air Filter-Regulator Combination Unit The Filter-Regulator Combination is one of the most popular air preparation units. The 2 are assembled together to form a single unit. Air Filter is used to separate dust dirt moisture & other contaminants from compressed air. Filter has a Die Cast Aluminium body polycarbonate bowl with a steel bowl guard & a high performance Sintered Bronze. Filtering element Filter is designed with a Separator & Shield for efficient moisture separation. It is combined with a Regulator which maintains a steady outlet pressure unaffected by variations/fluctuations in the inlet pressure. Regulators have a Non Raising Press to Lock adjusting knob for locking at any set pressure .Regulators work on a Diaphragm operated relieving type mechanism with pressure compensated by balanced poppet. Pressure adjustment range of 7 - 145 PSI (0.5 - 10 BAR) 40 micron filtering element Press Type Manual Drain with Night Time Drain feature which automatically drains off the bowl once the compressed air supply to the filter is switched off. WETTED COMPONENTS: Aluminium Bronze Brass Steel Acetal Polycarbonate Stainless Steel & Nitrile FRC13 Type: MINIATURE COMPLETE WITH 42MM GAUGE Max flow rate: 20 CFM / 550 LPM Threaded Type Steel Bowl Guard CONFORMS TO ISO 6953-1 & 5782-1 WARNING: Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils thinner solvents trichloroethylene kerosene or other aromatic hydrocarbons.
