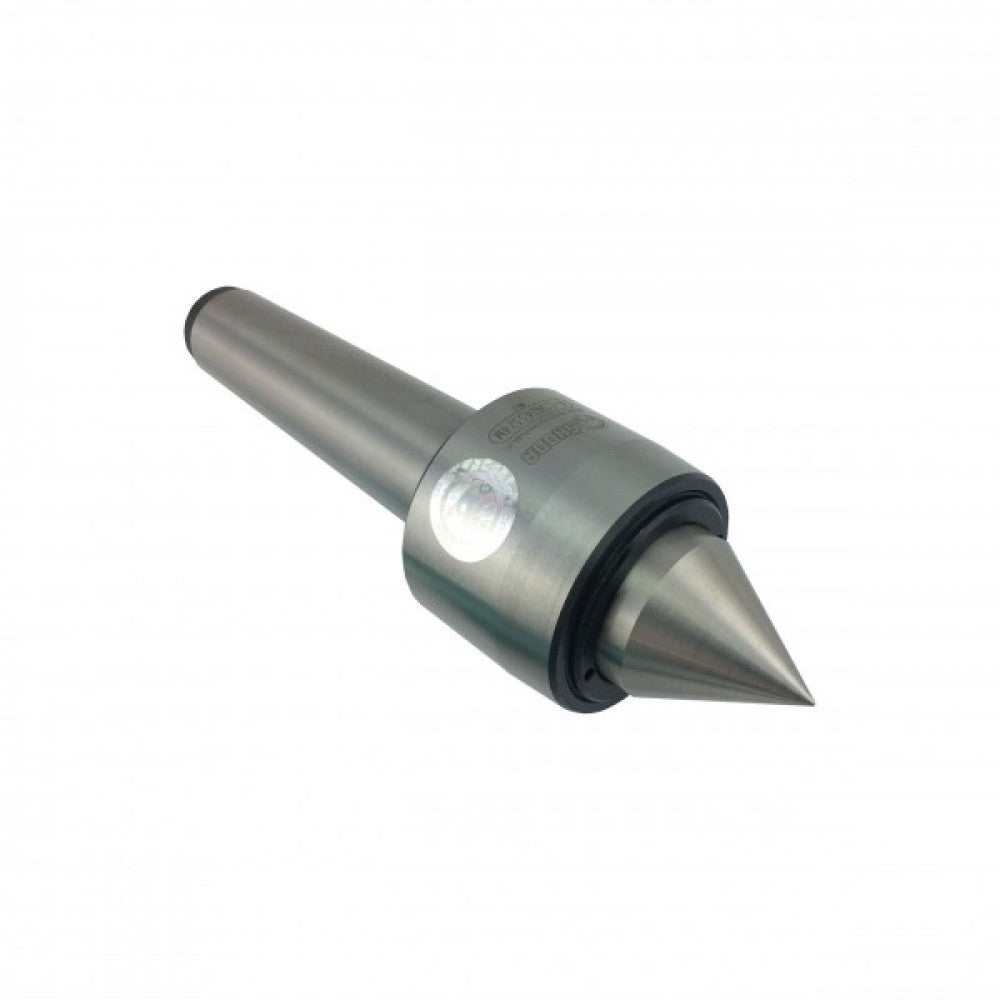

4MT Live Lathe Centre

These centres are intended for the clamping of workpieces on lathes
Run - out tolerance of max. 0.0035 mm

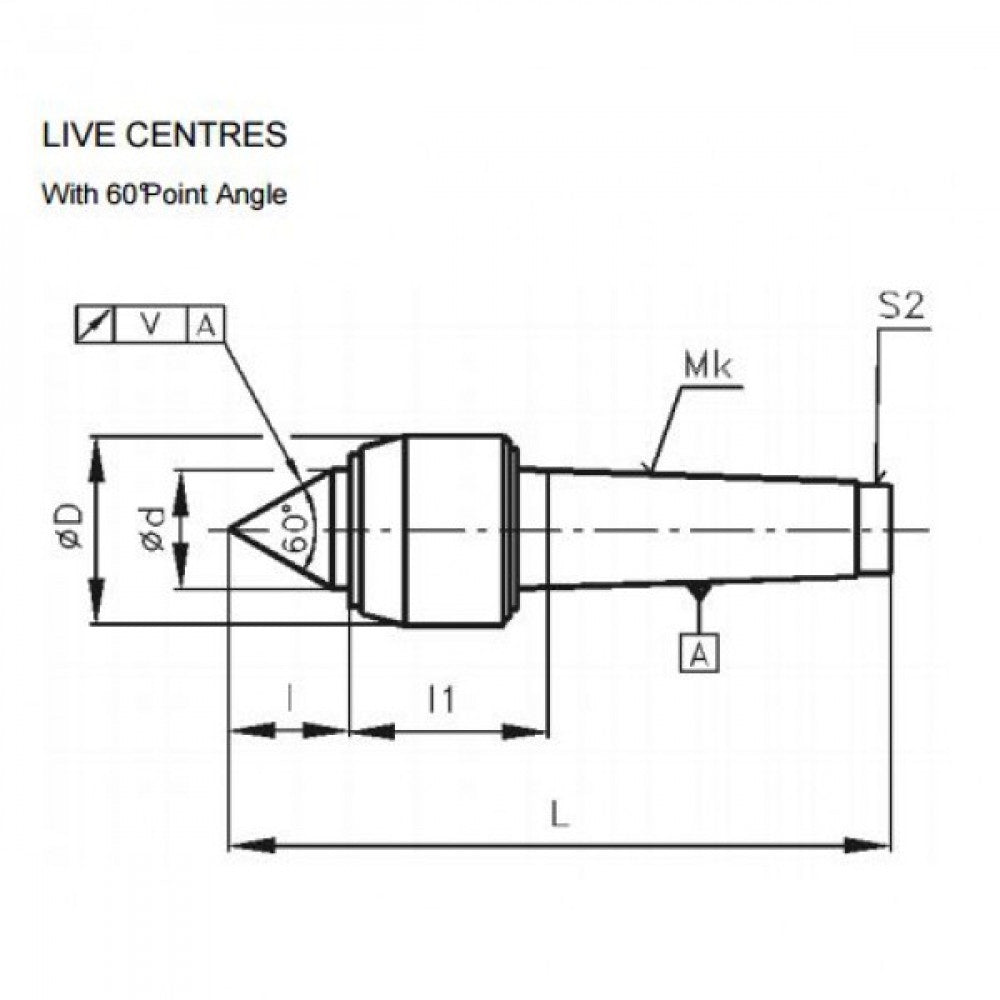

Morse taper 4
Overall length (L) 194mm
Point length (I) 37.5mm
Body diameter (D) 55mm
Point major diameter (d) 35mm
Max speed 4000rpm
Max weight 1300kg
