Description
Uni-T is one of the leading Test & Measurement solutions provider in the world & a prestige test meter br& throughout Asia. They are well known for high quality & affordable test & measurement products.

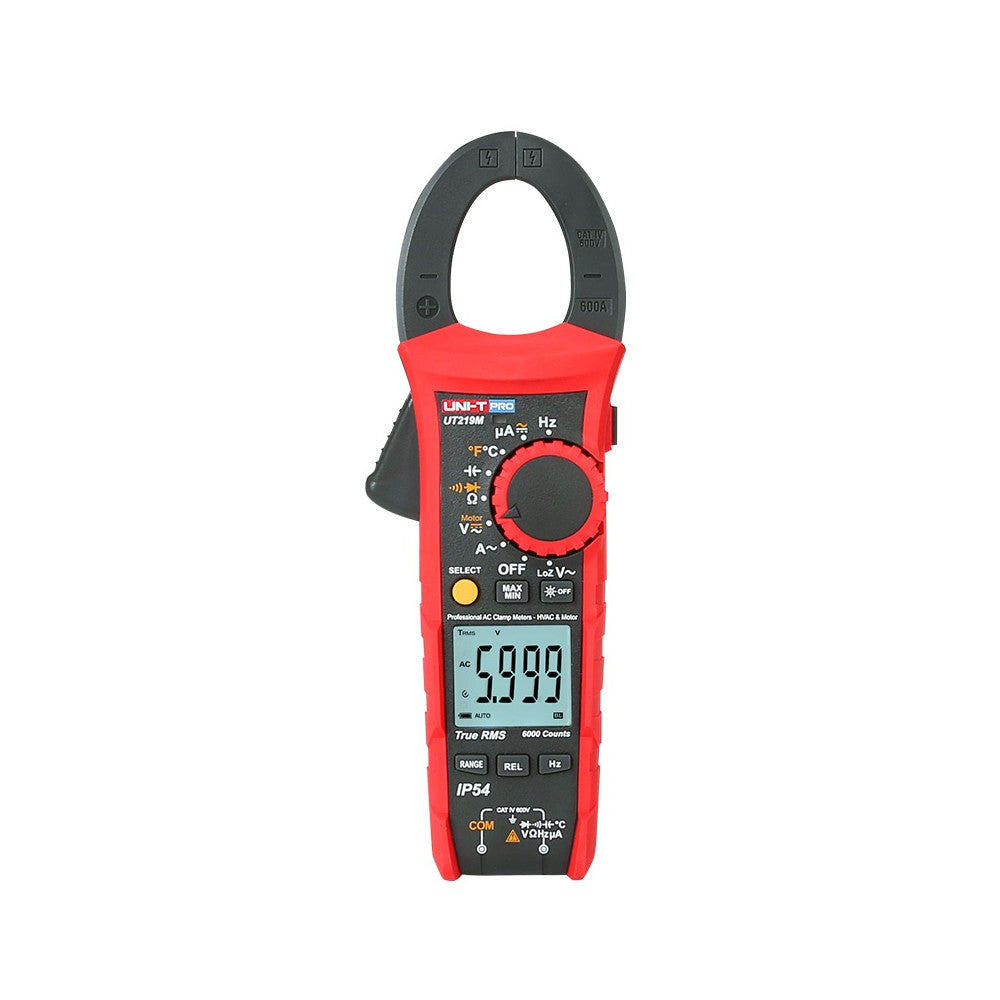

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating & able to withst& 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R & motor service technicians.
The waterproof rating is up to IP54; therefore, it can be used in environment with water splashing or much dusty environments.
Features
Display count 6000
Auto/Manual range
Jaw opening 33mm diameter
True RMS
3-phase motor sequence test 600V
3V Diode test
3 times/s Measurement sampling rate ?
LCD Display ?
Auto power off/MAX/MIN
Low battery indication
Data hold (H)
Relative mode (REL)
ZERO mode
Function selection
Auto backlight + Flashlight
2m drop proof
IP54 IP rating
Input impedance ?10M?
LoZ input for ghost voltage measurement
Temperature & ?A measurements
Specifications Range UT219M
AC current (A) 600A ±(1.8%+6)
AC voltage (V) 1000V ±(1%+6)
DC voltage (V) 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance (?) 60M? ±(1%+3)
Capacitance (F) 60mF ±(4%+7)
Frequency (Hz) 600Hz~40MHz ±(0.1%+5)
Temperature -40~1000? ±(2%+5?)
-40~1832? ±(2%+9?)
AC current frequency response ? 40Hz~400Hz
AC voltage frequency response ? 40Hz~400Hz
In box
1 x UT219M Digital Clamp Meter
1 x Test Leads (1 m)
1 x Temperature Probe (80 cm)
1 x Pouch
1 x English manual
3 x AAA Batteries
UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating & able to withst& 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R & motor service technicians.
The waterproof rating is up to IP54; therefore, it can be used in environment with water splashing or much dusty environments.
Features
Display count 6000
Auto/Manual range
Jaw opening 33mm diameter
True RMS
3-phase motor sequence test 600V
3V Diode test
3 times/s Measurement sampling rate ?
LCD Display ?
Auto power off/MAX/MIN
Low battery indication
Data hold (H)
Relative mode (REL)
ZERO mode
Function selection
Auto backlight + Flashlight
2m drop proof
IP54 IP rating
Input impedance ?10M?
LoZ input for ghost voltage measurement
Temperature & ?A measurements
Specifications Range UT219M
AC current (A) 600A ±(1.8%+6)
AC voltage (V) 1000V ±(1%+6)
DC voltage (V) 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance (?) 60M? ±(1%+3)
Capacitance (F) 60mF ±(4%+7)
Frequency (Hz) 600Hz~40MHz ±(0.1%+5)
Temperature -40~1000? ±(2%+5?)
-40~1832? ±(2%+9?)
AC current frequency response ? 40Hz~400Hz
AC voltage frequency response ? 40Hz~400Hz
In box
1 x UT219M Digital Clamp Meter
1 x Test Leads (1 m)
1 x Temperature Probe (80 cm)
1 x Pouch
1 x English manual
3 x AAA Batteries
