Description
Uni-T is one of the leading Test & Measurement solutions provider in the world & a prestige test meter br& throughout Asia. They are well known for high quality & affordable test & measurement products.

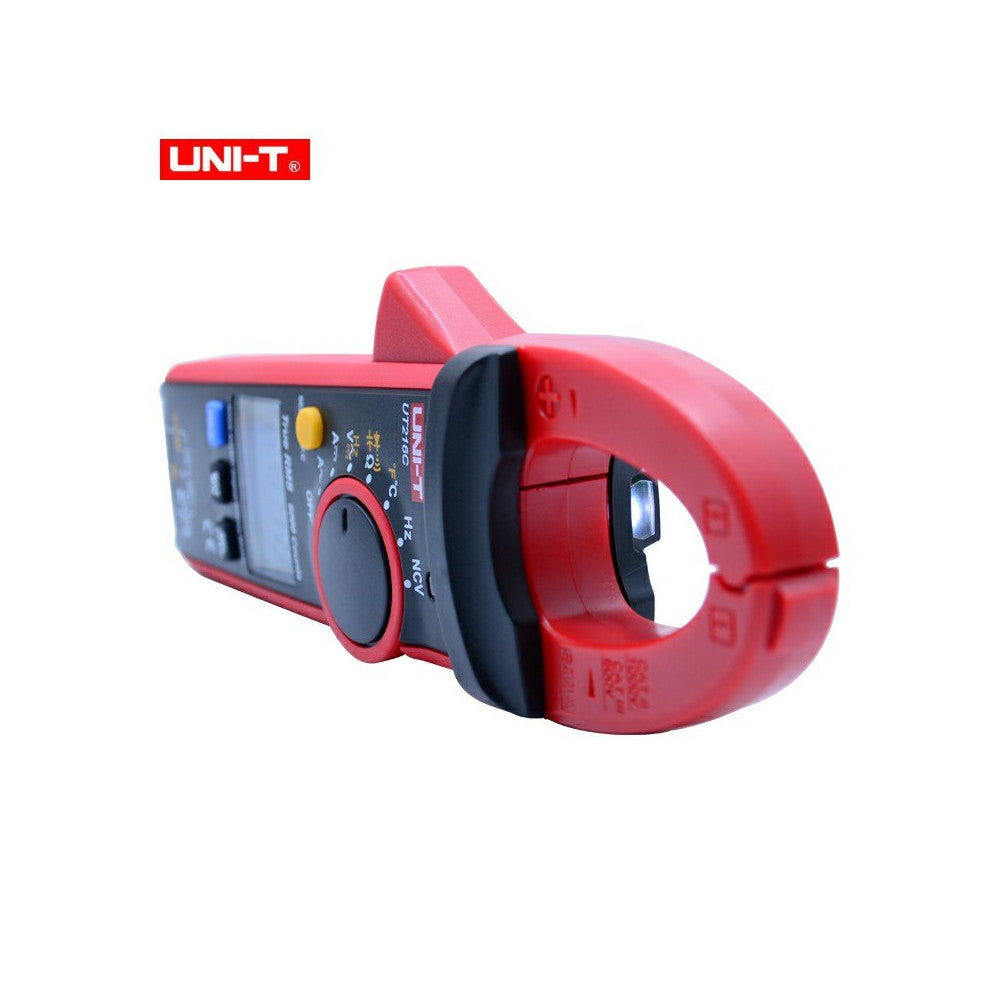

The function packed UT216C is a 600A True RMS Digital Clamp Meter Auto Range w/Frequency Capacitance Temperature & NCV Test. Only this much functionality & quality can come from Uni-T at this affordable price.
FUNCTIONS
Display Count 6000
Auto Range
Jaw Capacity 30mm
True RMS
Diode Test
NCV - non-contact AC voltage testing
VCF
Data hold
Zero/Rel/max/min Mode
Inrush Current
Bar graph 61
Display Backlight
LED flashlight
Auto Power Off
Continuity Buzzer
Low Battery Indication
Input Protection
Input Impedance DC 10M?+
1 year warranty
SPECIFICATIONS
Alternate Current 60A/600A ± (2.5%+5)
Direct Current 60A/600A ± (2.5%+5)
Alternate Voltage 6V/60V/600V/750V ±(1.2%+5)
Direct Voltage 600mV/6V/60V/600V/1000V ±(0.8%+1)
Resistance 600?/6k?/60k?/600k?/6M?/60M? ±(1%+2)
Capacitance 60nF/600nF/6?F/60?F/600?F/6mF/60mF ±(4%+5)
Frequency 10Hz ~ 1MHz ±(0.1%+4)
Temperature -40°C ~ 1000°C ±(2%+10)
GENERAL CHARACTERISTICS
Power 3 x 1.5V AAA Batteries
Size 220x75x40mm
LCD Size 38x24mm
Weight 231.7g
In Box:1 1 x UT216C 1 x K-type Thermocouple Probe 1 x Test Lead 1 x English Manual
