Description

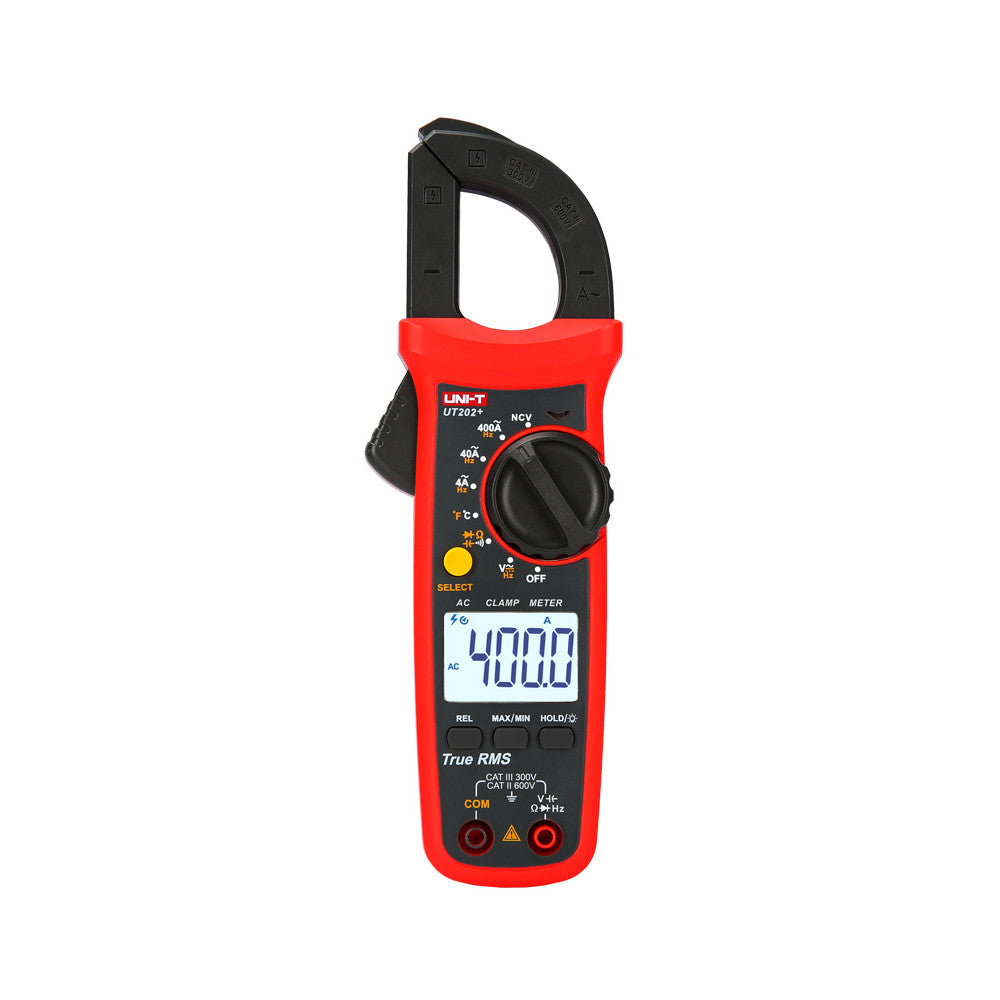

The UT202+ design offers improved user functionality with AC Current and AC/DC voltage along with a full range of functions including temperature measurement.
FEATURES:
CAT III 300V / CAT II 600V rating
True RMS / Auto range
NCV
Large LCD 4000 display count
28mm Jaw opening
AC current, AC/DC voltage
Temperature measurement (-40?~1000?)
Resistance and capacitance
Min / max, relative mode, and data hold.
INCLUDES:
1 x UT202+, Test leads, Batteries, Carrying Bag, Thermocouple and a 12-Month Warranty.
SPECIFICATIONS:
Specifications Range UT202+ UT204+
AC current (A) 400A ±(2%+10)
600A ±(2.5%+5)
AC current frequency (Hz) 50Hz~100Hz ±(1%+5)
DC current (A) 400A
600A ±(2.5%+5)
AC voltage (V) 600V ±(0.8%+5) ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~10kHz ±(1%+5)
10Hz~60kHz ±(0.5%+2)
DC voltage (A) 600V ±(0.5%+2) ±(0.5%+2)
Resistance (?) 40M? ±(0.8%+2)
60M? ±(0.8%+2)
Capacitance (F) 4mF ±(4%+5)
40mF
60mF ±(4%+5)
Temperature (?) -40?~1000? ±(1.5%+5) ±(1.5%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Features
Display count 4000 6000
Auto range ? ?
Jaw opening 28mm 28mm
True RMS ? ?
NCV ? ?
Live wire test ?
Continuity test ? ?
Diode ? ?
MAX/MIN ? ?
Relative mode ? ?
Zero mode ?
Data hold ? ?
Low battery indication ? ?
Auto power off ? ?
General Characteristics
Power AAA (Ro3) x 2
Display 37mm x 25mm
Product colour Red and grey
Product net weight UT202+?248g; UT204+:235g
Product size 215mm x 63mm x 36mm
Standard accessories Batteries, test leads, Thermocouple (UT202+/UT204+)
Standard individual packing Box, Carrying bag, English manual
