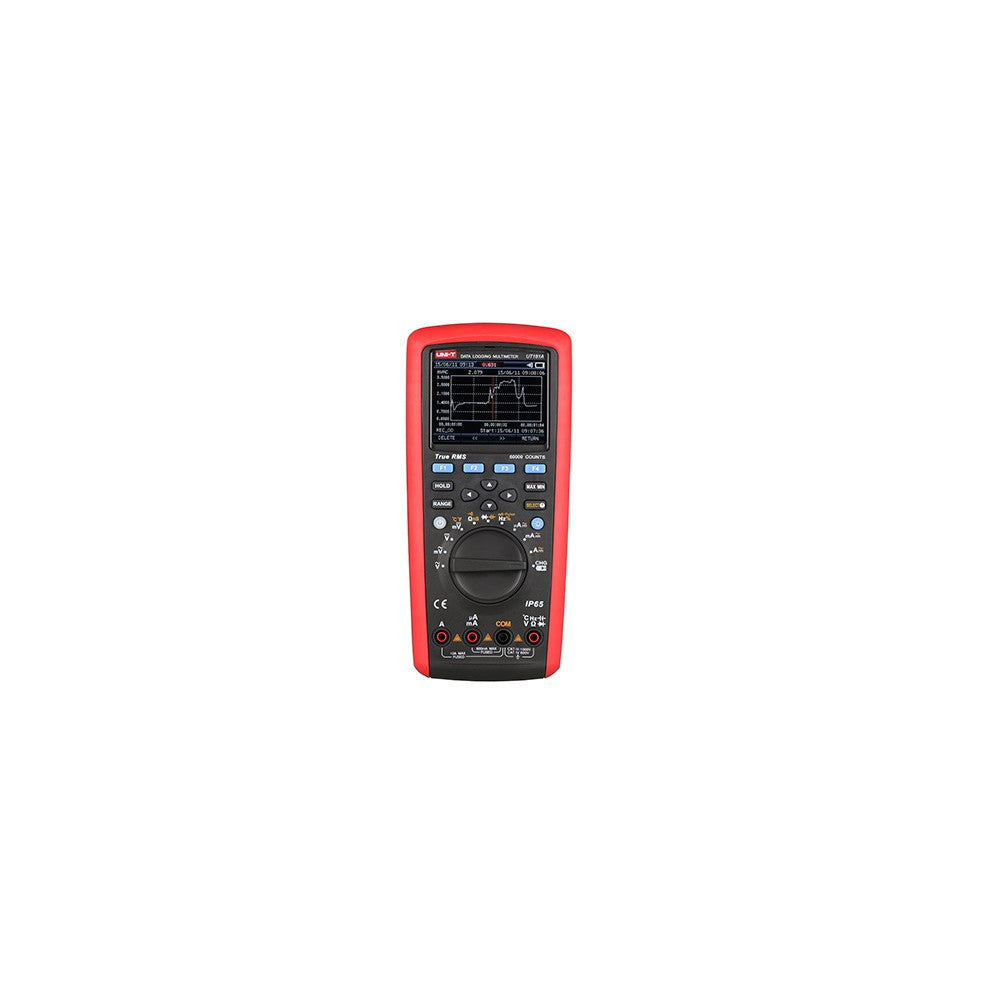

Uni-T UT181A True RMS Data-logging Multimeter

Uni-T is one of the leading Test & Measurement solutions provider in the world & a prestige test meter br& throughout Asia. They are well known for high quality & affordable test & measurement products.

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, & more. With the help of the data logging feature, users can store up to 20000 sets of measurement data & display them on a trend graph for long term monitoring.

FEATURES
Trend capture
Data logging: 20000
Data comparison
3.5-inch 64k colour TFT LCD
Dual temperature measurement
Low pass filter
2200mAh Li-ion battery
Real time & date
Peak hold
Bluetooth/APP
11.USB interface cable /PC software CD
IP65

Specifications Range UT181A
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.3%+30)
DC current (A) 10A ±(0.08%+10)
AC current (A) 10A ±(0.6%+20)
Resistance (?) 60M? ±(0.05%+2)
Admittance (nS) 60nS ±(2%+10)
Capacitance (F) 60mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
Temperature (°C) -40°C~1000°C ±(1%+30)
Temperature (°F) -40°F~1832°F ±(1.5%+50)

General Characteristics
Power Li-ion battery: 7.4V 2200mAh
Display 3.5-inch 64K color TFT LCD (320 x 240)
Product net weight 638.6g
Product size 225 x 103 x 59mm
