Description
The revolutionary way to add fluorescent dye into air conditioning & refrigeration systems — without the use of additional refrigerant! Just one connection, then turn the h&le to inject the dye. No complicated hookups! Ideal for preventive maintenance programs & for multiple, small units.Works in all systems, including high-pressure R-410A systems!
Spectroline Replacement Cartridge Benefits:
For all systems, including high-pressure R32 R-410A systems! Compatible with Mineral Oil, PVE, Polyol Ester & Alkyl Benzene Lubricant Systems.
Cost-effective for small to medium-size systems — Each disposable dye cartridge treats up to 2 gallons (7.6 L) of lubricant or 25 lbs (11.3 kg) of refrigerant or 12 tons of cooling.
No pouring, no refrigerant, no spills — Prefilled cartridges are clearly labelled with 14 calibrations so you’ll introduce exactly the right amount of dye every time! When the cartridge is empty, just throw it away. A new one connects in seconds.
Check valve prevents the backflow of dye or refrigerant & allows for easy storage of the hose/cartridge between jobs. It also prevents dye leakage or contamination. Torque from the assembly easily overcomes system pressure, even with R-410A.
Replacement Cartridge Contains:

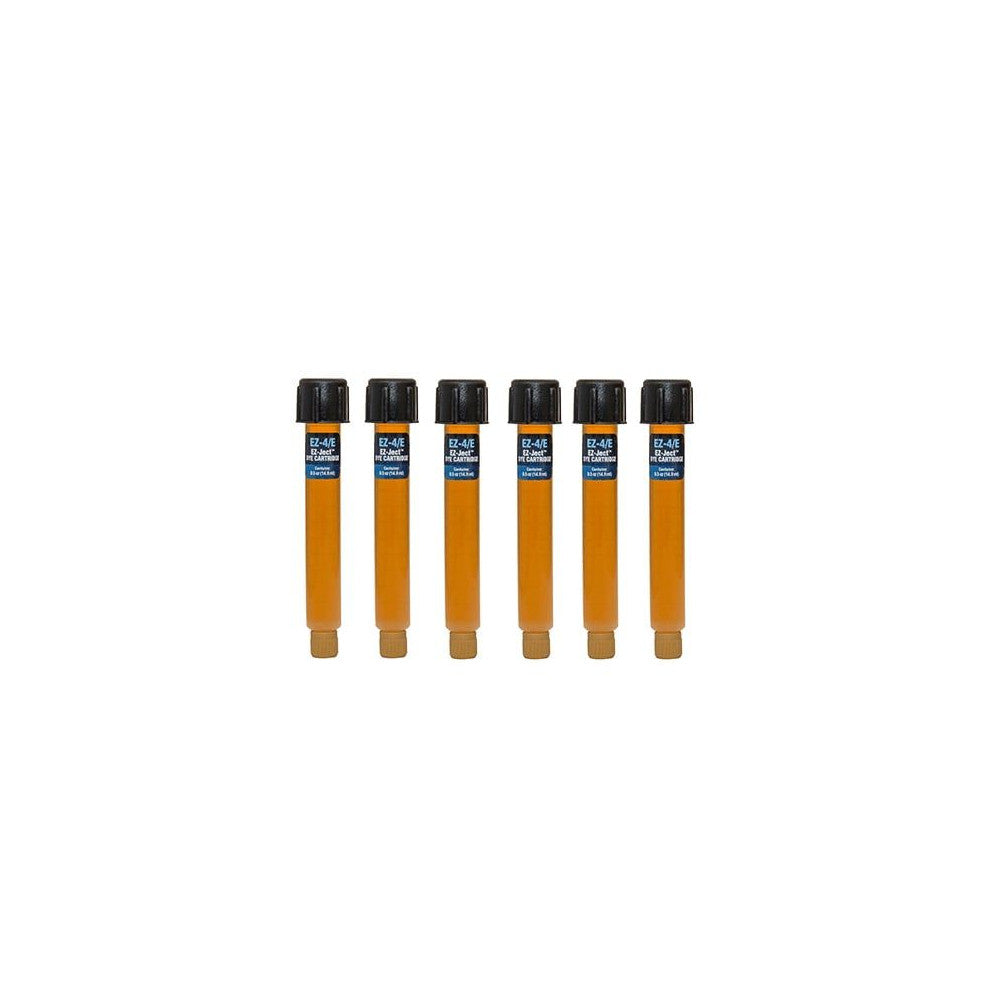

6 x Universal/POE Multi-Dose 15 ml Dye Cartridge.
How It Works:
Install the cartridge, then connect the injector hose to the system’s low-side service port. Turn the h&le to inject the exact amount of dye required & let it circulate.
Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
Specifications:
Item: EZ-4/E 6 x 15 ml EZ-Ject™ Universal/POE dye cartridge
Typical Application: For Medium to Large Size Systems
Amount of Oil in System: One per 7.6L of Oil
Amount of Refrigerant: 1 cartridge equals 11.3 Kg of Refrigerant or 12 tons of cooling
Dye Type: Universal/POE
Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Manufacturer’s Warranty: 1 Year
Spectroline Replacement Cartridge Benefits:
For all systems, including high-pressure R32 R-410A systems! Compatible with Mineral Oil, PVE, Polyol Ester & Alkyl Benzene Lubricant Systems.
Cost-effective for small to medium-size systems — Each disposable dye cartridge treats up to 2 gallons (7.6 L) of lubricant or 25 lbs (11.3 kg) of refrigerant or 12 tons of cooling.
No pouring, no refrigerant, no spills — Prefilled cartridges are clearly labelled with 14 calibrations so you’ll introduce exactly the right amount of dye every time! When the cartridge is empty, just throw it away. A new one connects in seconds.
Check valve prevents the backflow of dye or refrigerant & allows for easy storage of the hose/cartridge between jobs. It also prevents dye leakage or contamination. Torque from the assembly easily overcomes system pressure, even with R-410A.
Replacement Cartridge Contains:
6 x Universal/POE Multi-Dose 15 ml Dye Cartridge.
How It Works:
Install the cartridge, then connect the injector hose to the system’s low-side service port. Turn the h&le to inject the exact amount of dye required & let it circulate.
Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
Specifications:
Item: EZ-4/E 6 x 15 ml EZ-Ject™ Universal/POE dye cartridge
Typical Application: For Medium to Large Size Systems
Amount of Oil in System: One per 7.6L of Oil
Amount of Refrigerant: 1 cartridge equals 11.3 Kg of Refrigerant or 12 tons of cooling
Dye Type: Universal/POE
Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Manufacturer’s Warranty: 1 Year
