Description

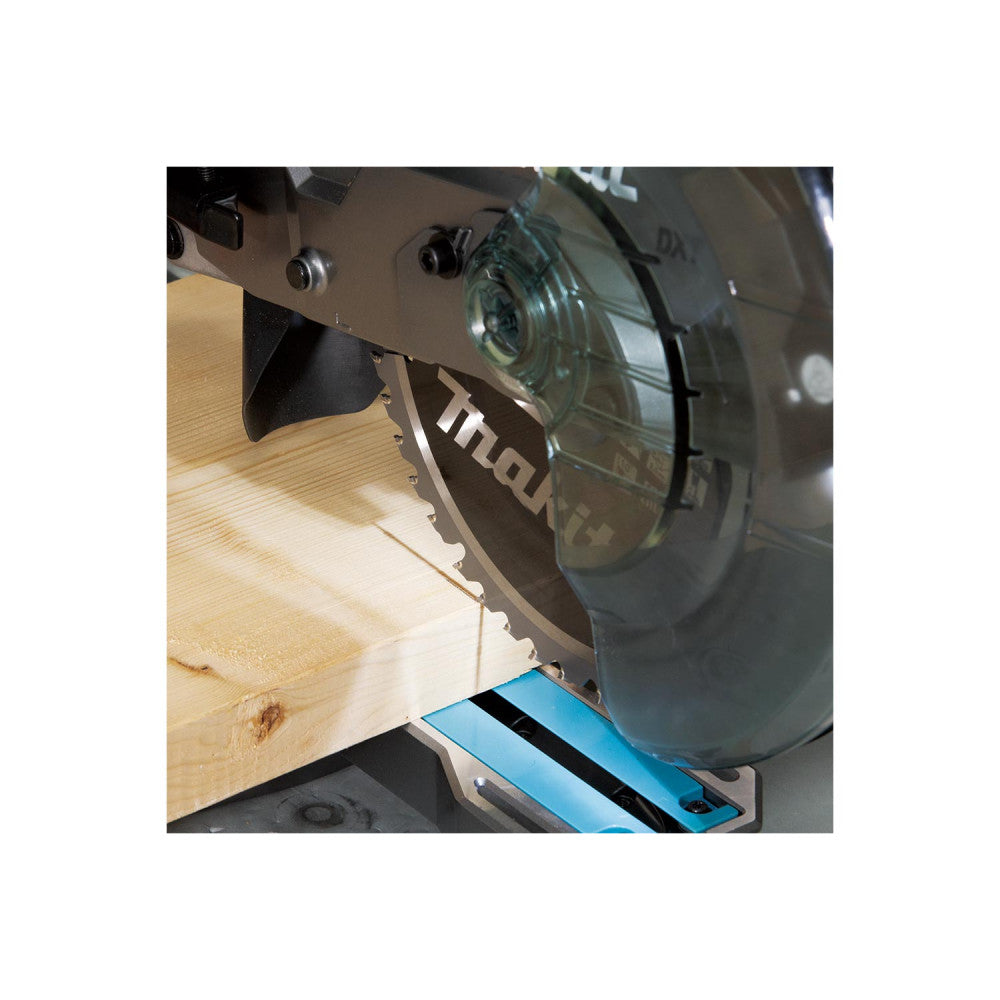

Forward Rail Design for smooth precise cutting

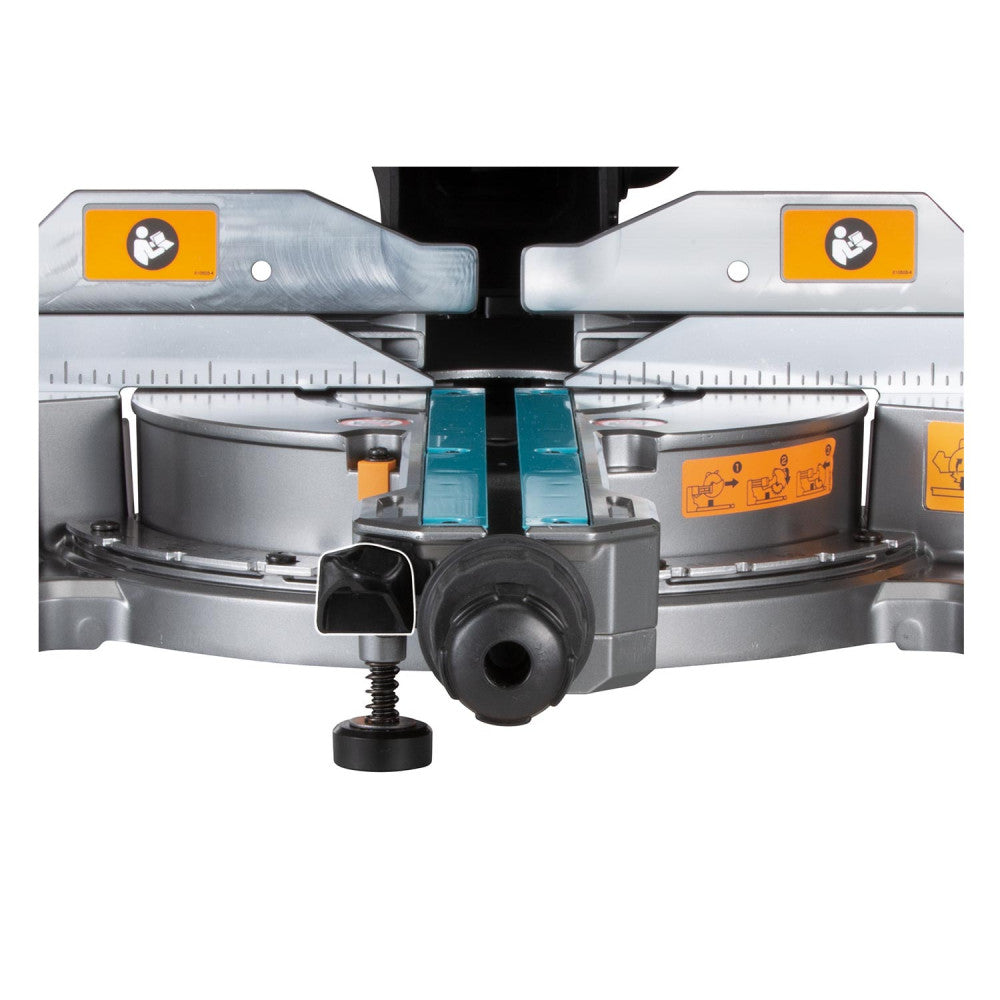

Expandable sub-table for improved stability when cutting long material
Shadow line projects cut line onto work material

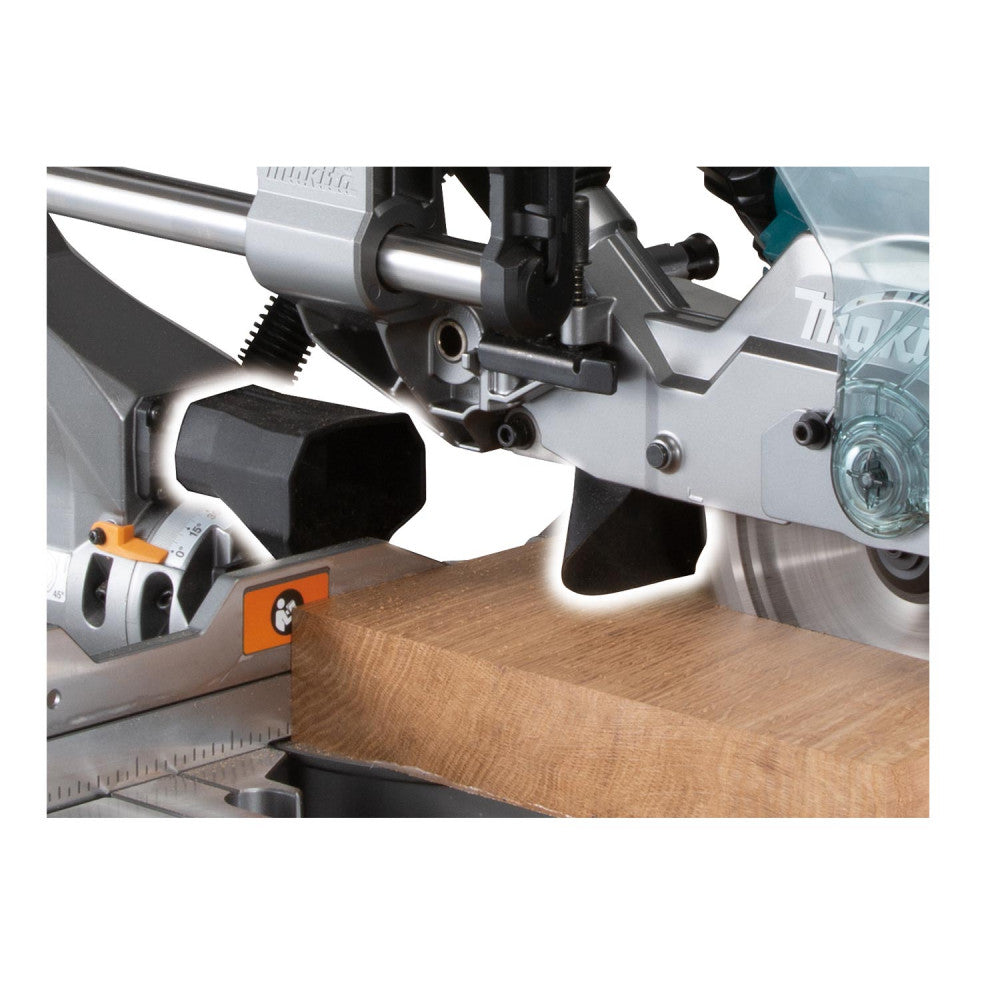

Dual zone dust extraction ports supress dust scattering of wood chips
Compatible with AWS* for wireless connectivity with compatible dust extraction
Specifications
Blade diameter 216mm (8-1/2")
Max cutting capacities 45°L/90°: 50 x 312mm
- at 90° 90°/90°: 70 x 312mm
- at 45° 45°L/45°LR: 50 x 220mm
- at 45°R/45°LR: 30 x 220mm
Bevel angle 48° L / 48° R
No load speed 4,800
Overall dimensions 702 x 551 x 557mm
Net weight 16.4kg
Sound Level 100dB(A)
Continuous rating input 1,000W
Voltage 40V
XGT battery compatibility 2Ah 2.5Ah 4Ah 5Ah
Included accessories
Efficut Saw Blade (E-06993), Dust Bag, Triangular Rule (762001-3), Vertical Vise, Hex Wrench and (191U61-8) Sub base assembly
Optional accessories
Horizontal Vise (122567-9)
