Description

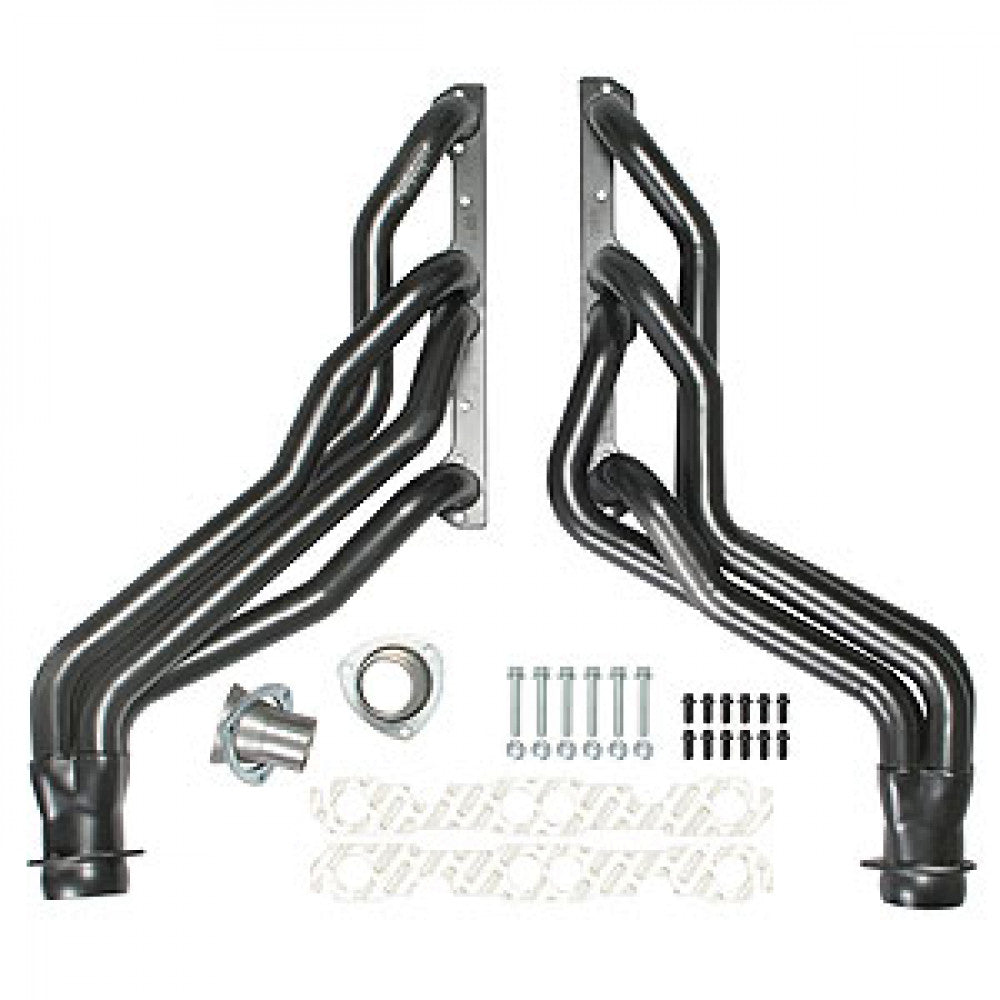

HEDMAN HEADERS FOR '88-95 CHEVY 2WD/4WD PICKUP WITH SB; 1-5/8 in. TUBE; 3 in. COLLECTOR- UNCOATED
These uncoated, LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck's factory Small Block engine breathe easy, and produce maximum horsepower and torque.
Specifications :
Product Type: Headers
Product Line: Hedman Street Headers
Header Style: Long tube one-piece
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 5/8"
Flange Style: Standard
Cylinder Head Port Shape: Oval
Collector Attachment: Ball and socket flange
Collector Diameter (in.):3.00
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2.500"
Tuned: No
Primary Tube Gauge: 16-gauge
Spark Plug Position: Straight
Flange Thickness : 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a pair.
Notes: Fits models with engine mounted offset to the passenger side of the vehicle. If engine is mounted in the center of the vehicle use HED-69090. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
These uncoated, LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck's factory Small Block engine breathe easy, and produce maximum horsepower and torque.
Specifications :
Product Type: Headers
Product Line: Hedman Street Headers
Header Style: Long tube one-piece
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 5/8"
Flange Style: Standard
Cylinder Head Port Shape: Oval
Collector Attachment: Ball and socket flange
Collector Diameter (in.):3.00
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2.500"
Tuned: No
Primary Tube Gauge: 16-gauge
Spark Plug Position: Straight
Flange Thickness : 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a pair.
Notes: Fits models with engine mounted offset to the passenger side of the vehicle. If engine is mounted in the center of the vehicle use HED-69090. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
