Description

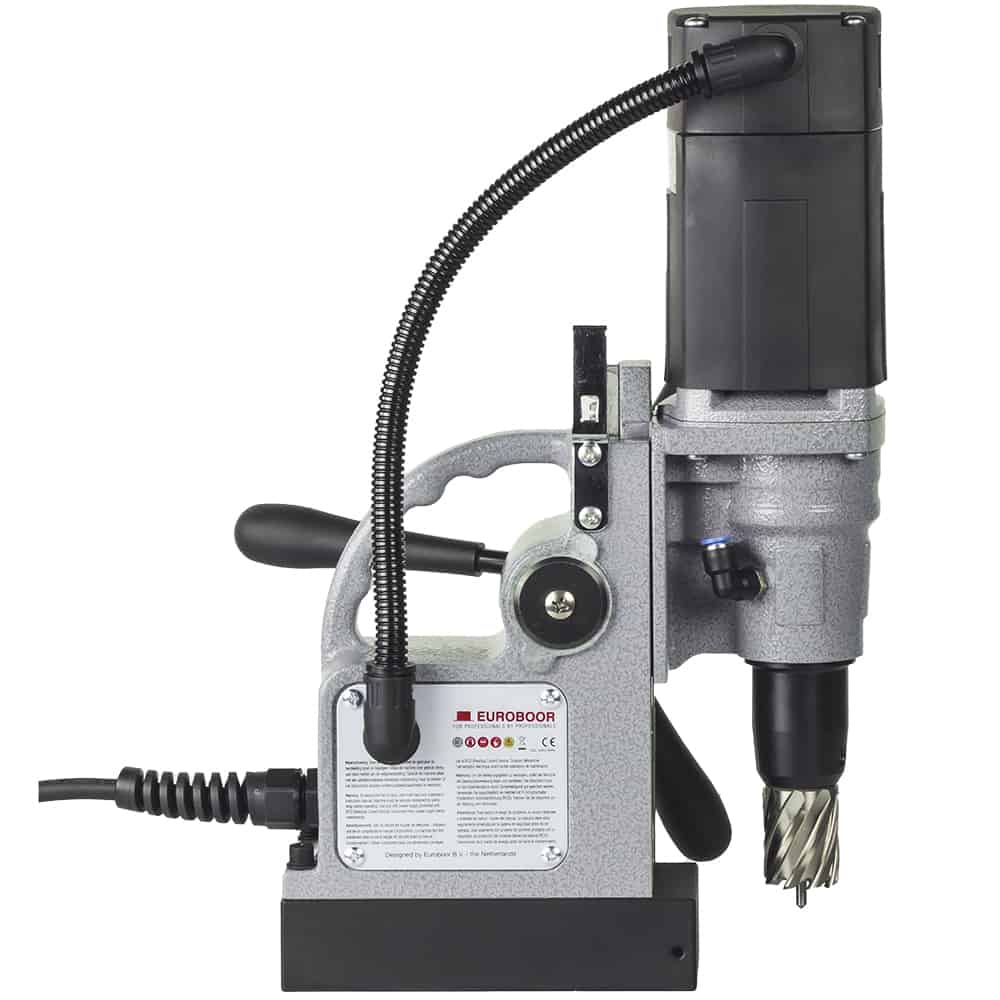

Euroboor ECO.30
Magnetic Drill Ø 7/16" - 1 3/16" / 8.5kg
The Euroboor ECO.30 is the lightest corded 1 3/16″ (30 mm) machine in the market.
Due to its small size the Euroboor ECO.30 is the ideal magnetic core drilling machine to drill holes in tight and narrow spaces. This machine measures barely 11″ (27,5 cm) in length and weighs only 18.7 lbs (8,5 kg).
With a power of 8.2 A (900 W) this small ECO.30 magnetic core drilling machine cuts holes in metal up to Ø 1 3/16″ (30 mm) easily and quickly.
This machine features:
Lightest corded 1 3/16″ magnetic drilling machine
Most compact in class
Incredibly easy to handle
Direct spindle drive
Integrated tool cooling and lubrication
Strong dual coil CNC machined magnet
Lightweight and Fast
Efficient 900W / 50-60Hz Motor
Ergonomic Grip
One Side Switching
Special alloy frame, total weight only - 8.5kg
Integrated Gearbox / Slide system
Additional features
Integrated slide and one-speed gearbox for:
High accuracy
Enlarged lifecycle
Minimal vibration
High precision height adjustment for:
Low maintenance
Minimal wear correction
TECHNICAL DATA:
Annular Cutters: 12 - 30mm Dia
Stroke: 90mm
Weight: 8.5kg
Magnetic Force: 1200kg
Power: 900W
Speed (no load): 775min-1
Speed (load): 400mim-1
Spindle: 19.05mm Weldon
Voltage: 220 - 240V / 50 - 60Hz
Magnetic Drill Ø 7/16" - 1 3/16" / 8.5kg
The Euroboor ECO.30 is the lightest corded 1 3/16″ (30 mm) machine in the market.
Due to its small size the Euroboor ECO.30 is the ideal magnetic core drilling machine to drill holes in tight and narrow spaces. This machine measures barely 11″ (27,5 cm) in length and weighs only 18.7 lbs (8,5 kg).
With a power of 8.2 A (900 W) this small ECO.30 magnetic core drilling machine cuts holes in metal up to Ø 1 3/16″ (30 mm) easily and quickly.
This machine features:
Lightest corded 1 3/16″ magnetic drilling machine
Most compact in class
Incredibly easy to handle
Direct spindle drive
Integrated tool cooling and lubrication
Strong dual coil CNC machined magnet
Lightweight and Fast
Efficient 900W / 50-60Hz Motor
Ergonomic Grip
One Side Switching
Special alloy frame, total weight only - 8.5kg
Integrated Gearbox / Slide system
Additional features
Integrated slide and one-speed gearbox for:
High accuracy
Enlarged lifecycle
Minimal vibration
High precision height adjustment for:
Low maintenance
Minimal wear correction
TECHNICAL DATA:
Annular Cutters: 12 - 30mm Dia
Stroke: 90mm
Weight: 8.5kg
Magnetic Force: 1200kg
Power: 900W
Speed (no load): 775min-1
Speed (load): 400mim-1
Spindle: 19.05mm Weldon
Voltage: 220 - 240V / 50 - 60Hz
