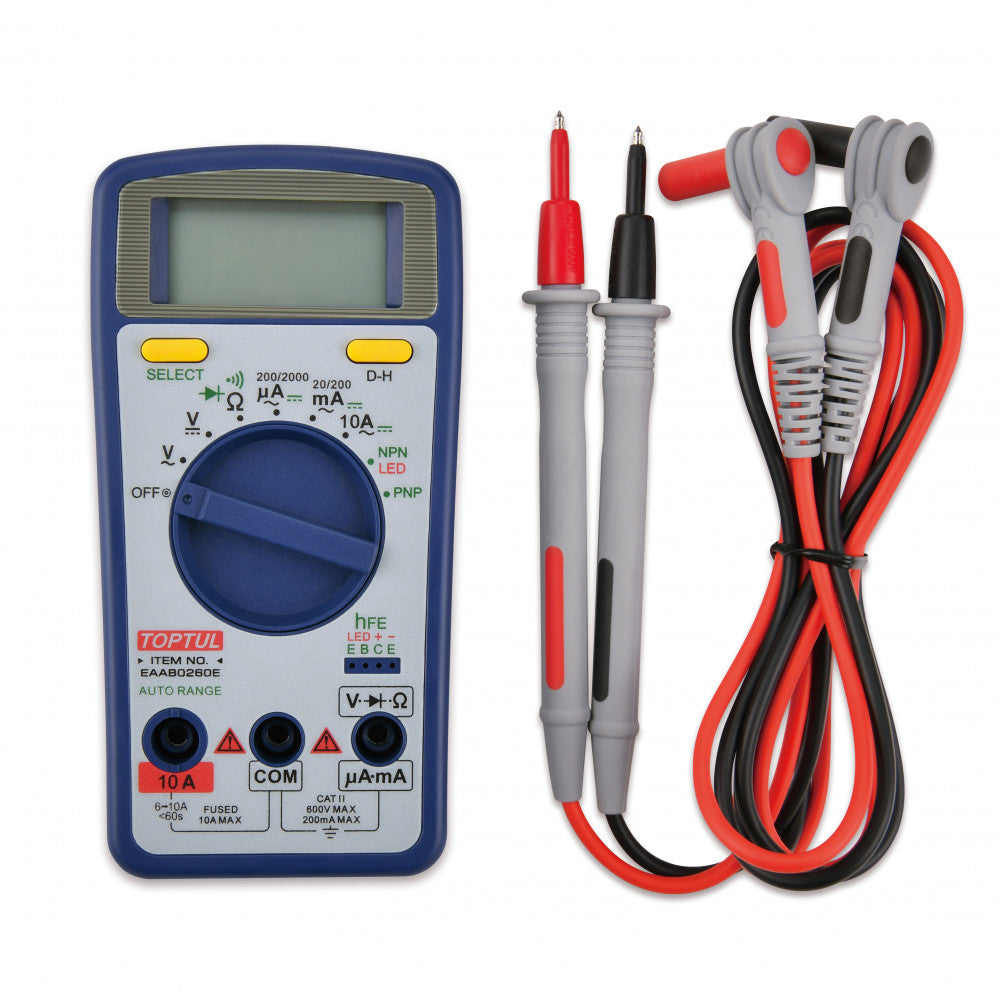

Digital Multimeter

Digital Multimeter
Test lead set with test tip (red/black)
Central dial switch
Large LCD with 3-1/2 digit display 2000 counts
Low battery indicator and auto shut off (after 15 minutes)
Additional Features: Data hold, auto range, auto power off selection, auto power off cancelation
Feature:
AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Diode test
Continuity test with buzzer
Transistor test (NPN & PNP)
LED test

SPECIFICATIONS
AC Voltage: 2V /20V / 200V / 600V
DC Voltage: 200mV / 2V / 20V / 200V / 600V
Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
AC / DC Current: 200μA / 2000µA / 20mA / 200mA / 2A / 10A
Diode: 1V
Continuity Check: 200Ω
Transistor (NPN/PNP): 2000 hFE
LED Test: Yes
Operating Environment: 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment: -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Power Supply Battery: 1.5V AAA x 2 pcs (included)
Fuse Protection: 0.5A / 660V Ø5xL20mm, 10A / 600V Ø6.35xL32mm
Testing Standard: IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033
Measurement Category: CAT Ⅱ 600V / CAT Ⅲ 300V
Pollution Degree: 2
Dimensions: 138mm (L) x 70mm (W) x 32mm (H)
Weight: Approx. 140g
