Description
Kit Includes:
Laser receiver LR 60 Professional 3 601 K69 P40
Receiver bracket RB 60 Professional
Remote control RC 6 Professional
Battery adapter BA 1 Professional
Wall mount WM 6 Professional
4 x 1.5 V LR20 battery (D)
4 x 1.5 V LR6 battery (AA)
Laser target plate
Laser viewing glasses (red) (spare part number 1 608 M00 05B)
Carrying case

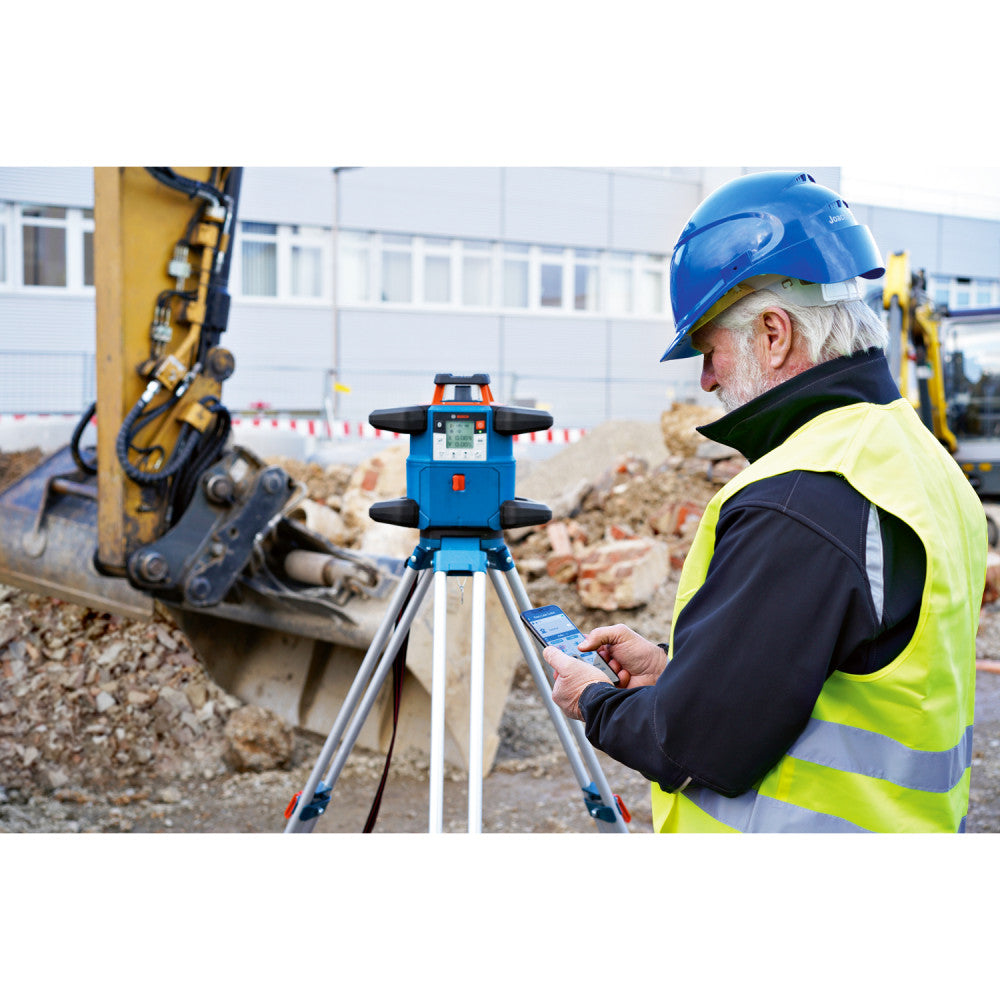

The GRL 600 CHV Professional is a highly durable and accurate laser tool designed for exterior applications. It has a robust design that offers impact protection and an IP68 rating against dust and water. The tool provides convenient connectivity and an intuitive interface, including a levelling remote app and a dual slope setting. With a long runtime and compatibility with both 18V battery system and alkaline batteries, it is suitable for cut-and-fill excavation work, concrete forms, landscaping, and façade work.
Battery voltage: 18
Laser diode: 630 – 650 nm, < 1mW
Operating temperature: -10 – 50 °C
Storage temperature: -20 – 50 °C
Laser class: 2
Working range with receiver*: up to 600 m (Diameter)
Working range without receiver*: up to 60 m (Diameter)
Accuracy*: ± 1.5 mm at 30 m* horizontal (*plus use-dependent deviation), ± 3.0 mm at 30 m* vertical (*plus use-dependent deviation)
Self-levelling range: ±8.5% (±5°)
Dust and splash protection: IP 68
Rotation speed: 150/300/600 min−1
Power supply: 18 V Li-ion battery, 4 x D cell batteries
Operating time (max.): 60 h, 70 h
Tripod thread: 2 x 5/8"
Projection: 1 x 360° line
Compatible laser receivers: LR 60
Weight with 4.0 Ah battery**: 4.3 kg
Weight with alkaline batteries**: 4.6 kg
