Description

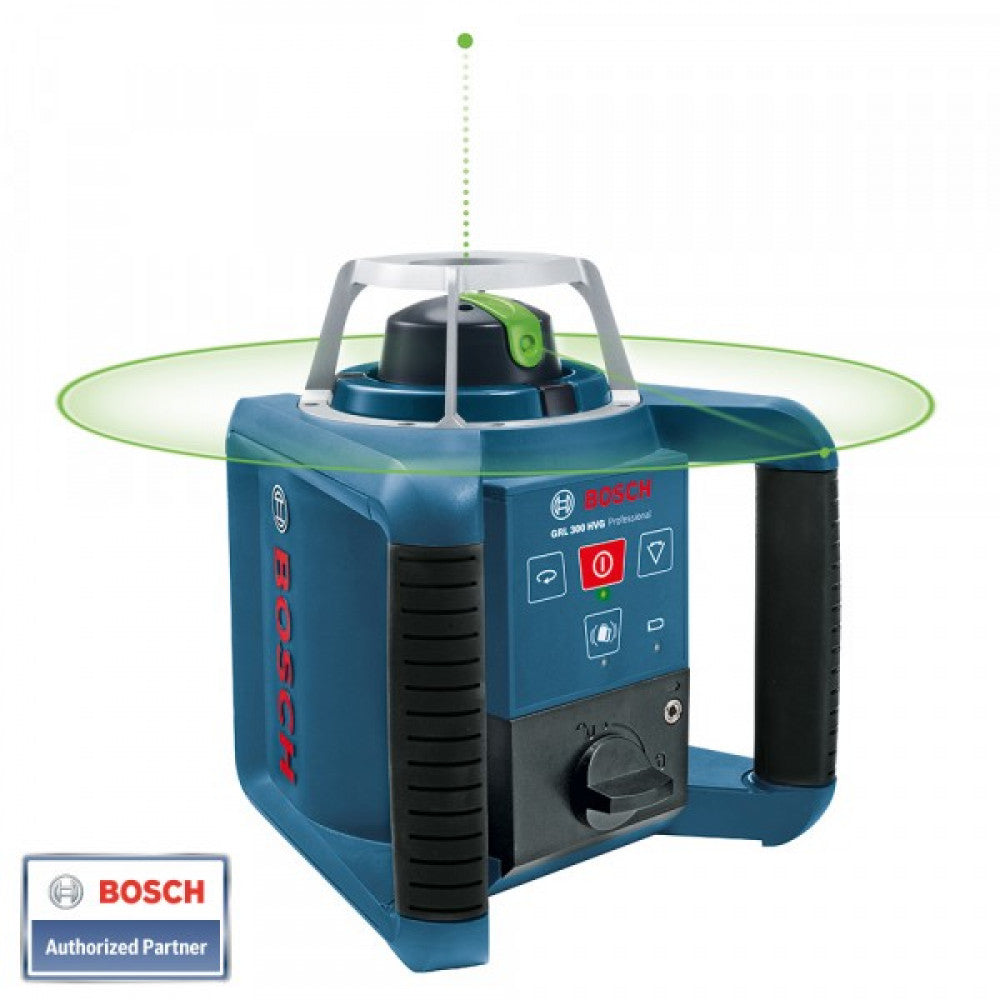

Bosch GRL 300 HVG Professional Rotation Laser: For indoor applications
User benefit:
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Other features:
- Point, line and rotation modes for optimum visibility
- High accuracy of 0.1 mm/m
- High level of robustness: fully functional, even after being dropped from a height of 1 m
- Dust and splash protection IP 54
Technical Data
Laser diode 532 nm, < 5 mW
Operating temperature 0 – 40 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range 100 m
Working range with receiver 300 m
Working range without receiver 100 m
Levelling accuracy ± 0.1 mm/m
Self-levelling range ± 5° (8%)
Levelling time 15 s
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah) 2 x 1.5 V LR20 (D)
Operating time, max. Rechargeable batteries (NiMH) 20 h
Tripod thread 5/8"
Weight, approx. 1,8 kg
Dimensions 190 mm (L) x 180 mm (W) x 170 mm (H)
Colour of laser line green
Comes with: LR 1 G laser receiver, bracket for receiver, RC 1 remote control and WM 4 wall mount, laser viewing glasses, target, 2 x 1.5V LR6 (D) batteries, carrying case
With a wide range of power tools, Bosch not only offers you the right tool, but the best quality tool for the job. Guaranteed. For this reason, we offer free warranty extensions from 1 to 6 years on Professional Measuring Tools when registered with Bosch within 4 weeks of the date of purchase. For further information and registration, visit: http://crm.bosch-pt.co.nz/nz/en/professional/service/warranty-extensions/warranty-extensions.html
Bosch part number: 0601061703
