Description

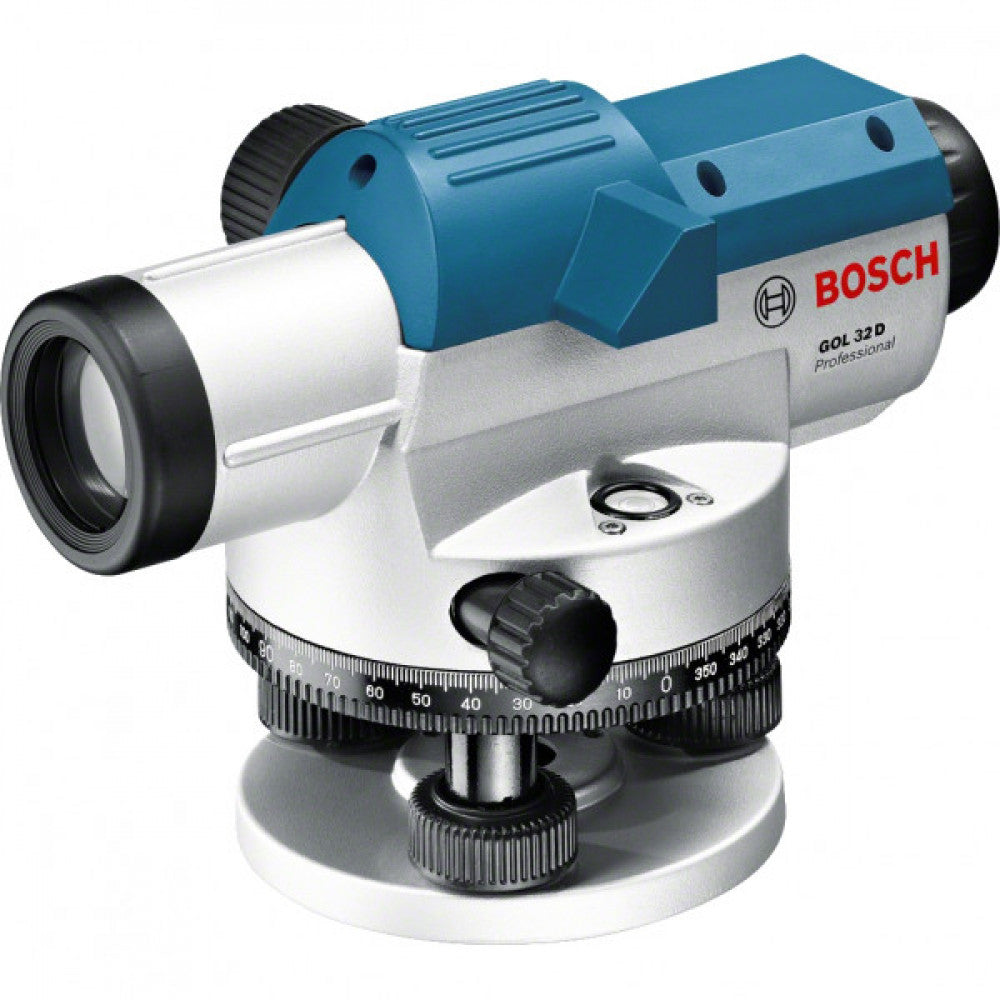

GOL 32 D Professional optical level: Robust and reliable – ideal for outdoor use
User benefit:
- Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
- Fast aperture for a sharp image of the target
- Compensator lock for safe transport
Other features:
- Target collimator for rough alignment
- Penta prism makes it easy to read the circular vial
- Erect image
- Large focusing knob for easy alignment
- Fast aperture for a sharp image of the target (measuring rod)
- Endless gon/angle setting using knobs with friction-braked rotation
Technical Data
Unit of measure 360 degrees
Magnification 32 x
Levelling accuracy 1 mm at 30 m
Working range 120 m
Dust and splash protection IP 54
Tripod thread 5/8"
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Length 215 mm
Width 135 mm
Height 145 mm
Weight, approx. 1,7 kg
Comes with: adjusting pin, allen key, lens cover, plumb bob, carrying case
With a wide range of power tools, Bosch not only offers you the right tool, but the best quality tool for the job. Guaranteed. For this reason, we offer free warranty extensions from 1 to 6 years on Professional Measuring Tools when registered with Bosch within 4 weeks of the date of purchase. For further information and registration, visit: http://crm.bosch-pt.co.nz/nz/en/professional/service/warranty-extensions/warranty-extensions.html
Bosch part number: 0601068500
